Place of Origin: | China |
Brand Name: | Taiye |
Certification: | ISO9001 10001 |
Model Number: | RBW-81 |
Minimum Order Quantity: | 1.5 tons |
---|---|
Price: | According to blade type |
Packaging Details: | 1.woven bag 2.wooden pallet 3.can be customized |
Delivery Time: | 10 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50 tons per week |
Material: | Iron Wire | Surface Coated: | PVC Coated |
---|---|---|---|
Blade Type: | BTO,CBT | Install Way: | Single Or Cross |
Fitting: | Clips | Application: | Protection |
High Light: | security razor wire,security wire fence |

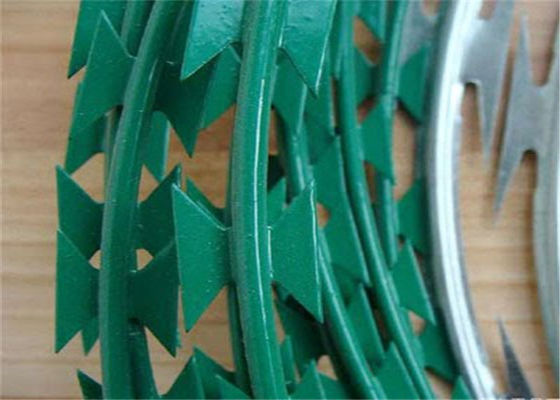

PVC Coated Concertina Wire Colour Razor Ribbon Barbed Wire
PVC Coated Razor Barbed Wire material applied for razor type barbed wire and barbed tape wire: Galvanized razor wire or stainless steel razor coils.PVC coated razor barbed wire can be installed in the form of barbed tape wire or concertina coil to walls or fencings.
PVC razor barbed wire(Surface Galvanized/spray Painting)) is the razor wire produced by anti-rust treatment after being produced. PVC (spray) technology ,owing to the surface treatment,the razor wire could have the very good corrosion resistance, surface gloss appearance, deterrent effect, which is very important in construction, economical and practical excellent features,etc.
PRODUCT SPECIFICATION FOR PVC COATED RAZOR WIRE
Model | Die legend | Blade thickness | Inner-line diameter | Length of blade | Width of blade | Blade gap |
---|---|---|---|---|---|---|
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 | |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 | |
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 | |
CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Number of turns | Standard coverage length | Forms of production | Remarks | |
---|---|---|---|---|
450mm | 33 | 8M | CBT-65 | Single coil |
500mm | 41 | 10M | CBT-65 | Single coil |
700mm | 41 | 10M | CBT-65 | Single coil |
960mm | 53 | 13M | CBT-65 | Single coil |
500mm | 102 | 16M | BTO-10.12.18.22 .30 | Cross type |
600mm | 86 | 14M | BTO-10.12.18.22 .30 | Cross type |
700mm | 72 | 12M | BTO-10.12.18.22 .30 | Cross type |
800mm | 64 | 10M | BTO-10.12.18.22 .30 | Cross type |
960mm | 52 | 9M | BTO-10.12.18.22 .30 |
Cross type |
PRODUCT APPLICATION FOR PVC COATED RAZOR WIRE
PVC Coated Razor Wire is widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. It has become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.They are usually used together with the fence products, such as the welded fence, chain link fence, etc..
PVC razor wire Packing: Carton/PP woven cloth/Pallet or loose packing
Razor barbed tape is a kind of modern security fencing material fabricated with razor-sharp steel blade and high-tensile wire.
Razor wire presentation form: concertina coils type, single coil razor wire, straight type razor wire, razor wire mesh fence
