Place of Origin: | CHINA |
Brand Name: | Taiye |
Certification: | ISO9001 ISO140001 |
Model Number: | 68 |
Minimum Order Quantity: | 1tons |
---|---|
Price: | To be negotiated |

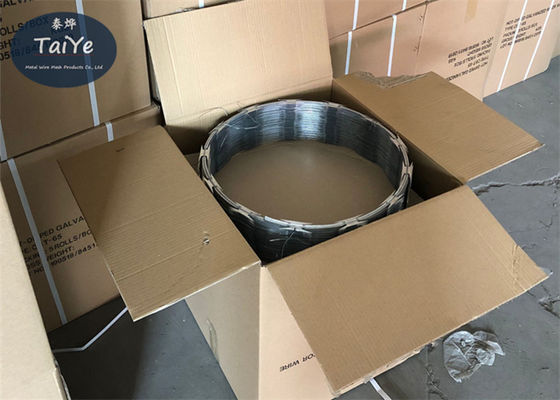

Packaging Details: | 1. Per roll Razor be packed inner waterproof paper with woven bag outside, then by bulk or 50 rolls be a bundle with strip. 2. Per 50 coils Razor be a pallet. |
Delivery Time: | 5-15 days after recive depoist |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash |
Supply Ability: | 20tons per day |
Material: | Stainless Steel | Razor Blade Style: | CBT-65 |
---|---|---|---|
Diameter Of Per Coil Razor: | 500mm | Weight Per Coil Razor: | 6kg |
Package: | Inner Waterproof Paper With Woven Bag Outside | Color: | Silver |
High Light: | barbed wire with blades,galvanized razor wire |
Philippines Combat Razor Wire CBT65 Per Roll Weight 7kg Barb Wire For Sale
Razor Barbed Wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.
Razor Blade Specification | |||||
Reference NO. | Thickness(mm) | Wire Dia.(mm) | Barb Length(mm) | Barb Width(mm) | Barb Spacing(mm) |
CBT-65 | 0.45±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Concertina Coil Specification | |||||||
Coil Diameter | 300mm | 450mm | 730mm | 730mm | 980mm | 980mm | 1250mm |
(12inch) | (18inch) | (28inch) | (36inch) | (36inch) | (36inch) | (50inch) | |
Recommended Stretch Length | 4m | 10m | 15-20m | 10-12m | 10-15m | 8m | 8m |
Coil Diameter When Stretched | 260mm | 400mm | 600mm | 620mm | 820mm | 850mm | 1150mm |
Spiral Turns Per Coil | 33 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 |
Clips Per Spiral | 3 | 3 | 3 | 5 | 5 | 7 | 9 |
Barbed Tape Wire Specification | ||||
Loop Outside Diameter | No.Of Loops | Standard Length Per Coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single Coil |
500mm | 56 | 12-13M | CBT-60.65 | Single Coil |
700mm | 56 | 13-14M | CBT-60.65 | Single Coil |
960mm | 56 | 14-15M | CBT-60.65 | Single Coil |
450mm | 56 | 8-9M(3CLIPS) | BTO-10.12.18.22.28.30 | Cross Type |
500mm | 56 | 9-10M(3CLIPS) | BTO-10.12.18.22.28.30 | Cross Type |
600mm | 56 | 10-11M(3CLIPS) | BTO-10.12.18.22.28.30 | Cross Type |
600mm | 56 | 8-10M(5CLIPS) | BTO-10.12.18.22.28.30 | Cross Type |
700mm | 56 | 10-12M(5CLIPS) | BTO-10.12.18.22.28.30 | Cross Type |
800mm | 56 | 11-13M(5CLIPS) | BTO-10.12.18.22.28.30 | Cross Type |
900mm | 56 | 12-14M(5CLIPS) | BTO-10.12.18.22.28.30 | Cross Type |
960mm | 56 | 13-15M(5CLIPS) | BTO-10.12.18.22.28.30 | Cross Type |
980mm | 56 | 14-16M(5CLIPS) | BTO-10.12.18.22.28.30 | Cross Type |
The influence factors in pricing for BTO65 Razor Barbed Wire:
1. Material: Galvanized( electro galvanized, hot dipped galvanized, heavy galvanized) Stainless Steel (304, 316)
2. Razor Model(style): CBT65
3. Inner coil wire diameter: 1.8mm-3.0mm (2.7±0.1mm,2.5±0.1mm are the popular)
4. Razor Sheet Thickness: 0.45±0.5mm 0.4±0.5mm
5. Loop diameter: 450mm 500mm 600mm 700mm 800mm 900mm
6. Weight of Coil: 10kg(most popular) 7kg 8kg 9kg 12kg or as requirement
7. Package: Inner waterproof paper with woven outside. 50 coils per bundle by strip or as requirement
CBT65 razor barbed wire divided two kinds of display
Concertina Cross Razor Wire (with clips)
Concertina Cross razor wire is crossed razor wire. Two pieces of stainless steel razor wire or Zinc-coated Wire are bound together by clips to make it stronger.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
Concerntina Single Razor Wire (without clips)
Concertina Single Coiling razor wire is installed without clips; it runs in natural loops on walls or fencings. Single coiling razor wire is costless and can be easily installed.
Customized service is also available for us. We can customize products according to your requirements, including design and drawing.
After-sales service
Our after-sales service start immediately after signing the contract.
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
5. 3-20 years warranty depends on different products and using environment.
Anping TaiYe Wire Mesh Products Co.,LTD is a professional (ISO9001:2008 certificated) manufacturer and exporter of series wire mesh products.We mainly produce and supply the following products: Concertina razor wire, Razor wire flat wrap, Razor mesh;Wall spike, Security wall spike, Anti climb wall spike, Fence spike; Mobile security barrier, Rapid deployment barrier Concertina, Mobile razor wire security barrier; barbed wire, PVC coated barbed wire, Double twisted barbed wire; Razor mesh, Razor wire mesh fencing: Palisade fence, Welded mesh fence, Euro fence, Chain Link fence and other wire mesh products. Dozens of various kinds in about one thousand specifications. Besides supplying the domestic market, we have also established good business relationship with many countries such as European countries, the USA, Middle –east, Southeast Asia and some other countries and regions.
Any question kindly contact our sales manager Rill.
Skype is rill1990,
email is rill90@hotmail.com or rill@aptaiye.com,
mob or weichat is 86 18731838063 or RillJI.
Glad to provide professional service for u.
