Anping Taiye Metal Wire Mesh Products Co.,Ltd
Factory in Razor Wire over 10 years. Email: rill@aptaiye.com Mob:86-18731838063
 |
| Place of Origin: | HEBEI CHINA |
| Brand Name: | Taiye |
| Certification: | ISO9001 |
| Model Number: | 54 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | bulk to container |
| Delivery Time: | 15-25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash |
| Supply Ability: | 10days for one set |
| Material: | High Galv. Or 304 Stainless Steel | Razor Style: | BTO22 |
|---|---|---|---|
| Coils: | Triple Coils | Meters: | 100ms |
| Export Port: | Tianjin Xingang | Place Of Origin: | Anping China |
| High Light: | safety mesh fence,razor barbed wire mesh |
||

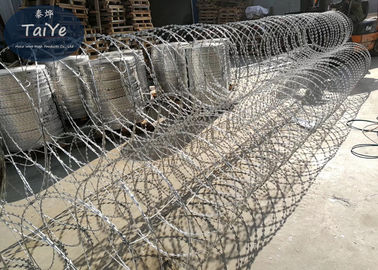

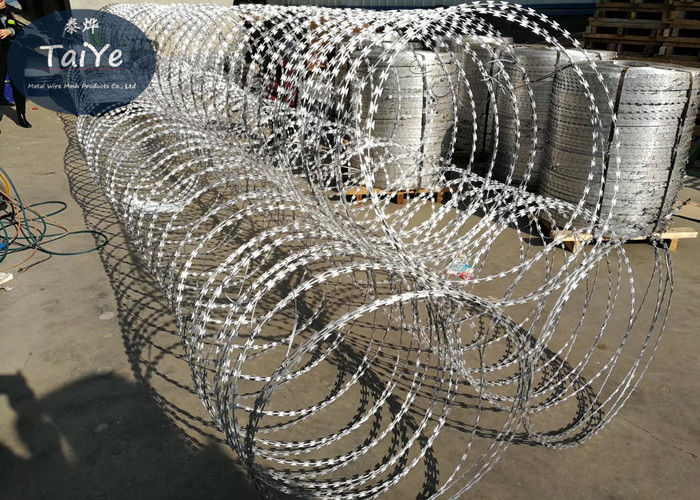

Heavy Galvanized Edge Wire BTO22 Triple Coil With Hexagonal Shaped Aluminum Pipe Fram
Razor Barbed Wire also known as the blade type barbed wire, is a new type of protective net product with strong protection and isolation ability. The sharp knife-shaped thorn is double-lined and buckled into a snake-like shape, which is both beautiful and chilling. Played a good deterrent effect. At the same time, the product has the advantages of beautiful appearance, good anti-blocking effect and convenient construction. Triple Coils Razor Barbed Wire is designed to provide rapid security fence protection; 75-1000 meter barriers of barbed tape concertina/razor coils can be deployed at incredible speed (300 meters in 20 seconds).
1. Chemical Tests
Element Razor ( Req %) Conform Core Wire (Req %) Conform
| C | 0.14-0.21 | 0.85-0.95 |
| Si | 0.09-1 | 0.10-0.23 |
| Mn | 0.4-0.5 | 0.38 |
| Cr | 0.3-0.4 | 0.30 |
| Ni | 0.36-0.4 | 0.35 |
| Cu | ≤0.06 | ≤0.06 |
| Fe | 98.25 | 97.57 |
2. Mechanical / Physical quantities
| Sr | Properties | Req Limits Conform |
| a | Corrosion/rust resisting | Min 5 years |
| b | Hot Dipped Galvanized Wire & Blade | |
| c | Razor Zn surface coating(g/m2) | 200 |
| d | Core Wire Zn coating thickness(μm) | 8-10 |
| e | Core Wire tensile strength(MPa) | 1430-1450 |
| f | Core Wire Hardness(HV) | ≤410 |
| g | Razor Hardness(HV) | ≤116 |
3. Physical measurements
| Sr | Properties | Req Limits |
| a | Blade Thickness(mm) | 0.5±0.05 |
| b | Core Wire Dia(mm) | 2.5±0.01 |
| c | Barb Length(mm) | 22±1 |
| d | Barb Width(mm) | 15±1 |
| e | Barb Spacing(mm) | 35±1 |
| f | Loops/Coil (nos) | 288 |
| g | Coi Dia(mm) |
730±5 (2xBase Coil) |
| h | CoilLength(m) | 70 |
| i | Weight/Coil(kg) | 6±0.5 |
4. 2 x base coils and 1 x top coil will be joined together by clamps and straightening wire in pyramid shape.
5. A steel Cable as running length limiting wire throughout the length of triple coil from one end to the other end.
6. Hexagonal shaped a;uminum pipe frame will be attached at both ends of each coil.
Razor wire usage:
Triple coils razor barbed wire is one of the specially designed equipment used by police to secure, protect a place or location of the demonstrators or rioters who try to enter /penetrate the defense in order to reduce physical contact between demonstrators and police officers. Maily serves in protecting of grass boundary, railway, highway and also widely used in military, jail and other national security organizations, and industry, agriculture, animal husbandry, dwelling house, also used as fence for cottage as society fence and other private buildings..
1. The current manually deployed wire is difficult to recover and is thus scrapped when no long
needed. With the Rapid Barrier System, the security fence wire can be recovered safely and neatly
2. Utilizing the Rapid Barrier System significantly reduces both man hours and manpower needed
to dispense and recover Razor wire barriers.
3. Barriers may either be manually or mechanically recovered for re-use.
4. Equipment is supplied to uplift and re-compress the barrier into modules, simple to handle and compact to store.
5. A single carrier unit can be quickly refilled to drop many kilometers of security fence barrier in a
short space of time.
6. Systems can be tailored to meet customers exact requirements.
Lifespan
The same barriers have been deployed and recovered over 90 times.
Tripe Coils Razor Barbed Wire Barrier are the speciallly designed equipment used by police to control some public emergency events. It could be easy to protect the scene or the location of the demonstrators or rioters who try to enter, in order to reduce the physical contact between demonstrators and police officers.
How to use the Tripe Coils Razor Barbed Wire Barrier
Now it is not the traditional way to open and close the razor wire.
We use a complete of solution to open the razor wire easily and rapidly, only by a remote control. when close the razor wire, also by the remote control.
Shipping
Shipping time: after receiving deposit, 3-7 work days will sent out factory
Shipping Way: BY sea, by train, by plane
Shipping Port: Tianjin Port, Shanghai Port.
Our Service
24 Hours Online Service
. Enquiry will be replied in 2 hours.
. Quality guarantee
. Custom make product
. Free Samplme
. Fastest delivery
Anping TaiYe Wire Mesh Products Co.,LTD is a professional (ISO9001:2008 certificated) manufacturer and exporter of series wire mesh products.We mainly produce and supply the following products: Concertina razor wire, Razor wire flat wrap, Razor mesh；Wall spike, Security wall spike, Anti climb wall spike, Fence spike; Mobile security barrier, Rapid deployment barrier Concertina, Mobile razor wire security barrier; barbed wire, PVC coated barbed wire, Double twisted barbed wire; Razor mesh, Razor wire mesh fencing: Palisade fence, Welded mesh fence, Euro fence, Chain Link fence and other wire mesh products. Dozens of various kinds in about one thousand specifications. Besides supplying the domestic market, we have also established good business relationship with many countries such as European countries, the USA, Middle –east, Southeast Asia and some other countries and regions.
Any question kindly contact our sales manager Rill and Skype is rill1990, email is rill90@hotmail.com or rill@aptaiye.com, mob or weichat is 86 18731838063 or RillJI. Glad to provide professional service for u.
