Anping Taiye Metal Wire Mesh Products Co.,Ltd
Factory in Razor Wire over 10 years. Email: rill@aptaiye.com Mob:86-18731838063
 |
| Place of Origin: | HEBEI CHINA |
| Brand Name: | Taiye |
| Certification: | ISO9001 |
| Model Number: | 49 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | bulk to container |
| Delivery Time: | 15-25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash |
| Supply Ability: | 10days for one set |
| Material: | High Galv. Or 304 Stainless Steel | Razor Style: | BTO22 |
|---|---|---|---|
| Coils: | Triple Coils | Meters: | 100ms |
| Export Port: | Tianjin Xingang | ||
| High Light: | razor barbed wire mesh,razor mesh fence |
||

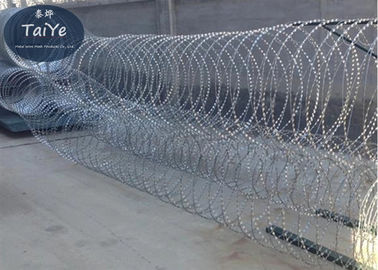

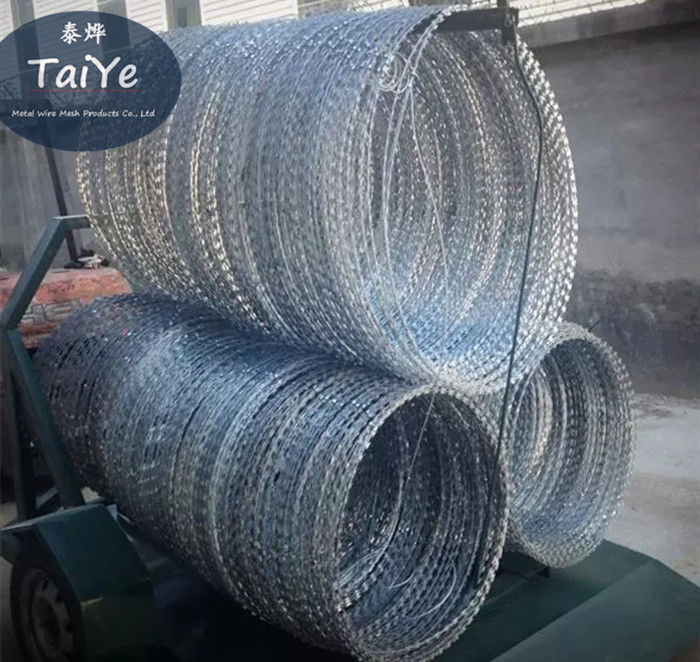

Security Concertina BTO22 Razor Barbed Wire Mobile Traffic Barriers
Mobile Security Barriers
Common specification:
Dimension of vehicle:2190mm(W) X 4700mm(L) X 2220mm(H), one vehicle(with barbed wire) Vehicle net weight(without wire) : Around 2150kgs
Hot dipped galvanized steel for lower vehicle body, reinforce protection and anti-rust. Adjustable front supporting tire, adjustable pulling rod
1. Material: stainless steel wire
2. Surface treatment: Electro galvanized,Hot dipped galvanized
3. Application:
Mobile Security Barriers is one of the specially designed equipment used by police to secure, protect a place or location of the demonstrators or rioters who try to enter /penetrate the defense in order to reduce physical contact between demonstrators andpolice officers.
4. Dimension / size of standard barbed wire barricades:
1) Diameter of coil: 700 mm or 900mm
2) The length of the barricade minimum: 120 meters (3 x 40 m)
3) The width of the barricade: 1.4 to 1.5 m
4) High barricades: 1.5 to 1.7 m
5) barbed wire Diameter: 2.4 to 2.6 mm
6) The distance between spines: 12 - 50 mm
7) The width of spines: 12 - 15 mm
8) High spines: 6 - 7.5 mm
9) Type / Thickness of thorns: Ripper Coil / 0.45 to 0.5 mm
10) The number of spirals: 55 of each coil (each 10 meters)
11) Number of clips: 5 each spiral
12) Equipped with sling stopper wire diameter of 5 mm
13)The coated layer of galvanized / Zeng :135-145 g /m²
Razor Wire Mobile Security Barrier 304 Stainless Steel Used for Police are the speciallly designed equipment used by police to control some public emergency events. It could be easy to protect the scene or the location of the demonstrators or rioters who try to enter, in order to reduce the physical contact between demonstrators and police officers.
How to use the Razor Wire Mobile Security Barrier 304 Stainless Steel Used for Police
Now it is not the traditional way to open and close the razor wire.
We use a complete of solution to open the razor wire easily and rapidly, only by a remote control. when close the razor wire, also by the remote control, as the following pictures.
Dimension / size of standard razor wire barricade:
1. Diameter of coil: 700 mm or 900mm
2. The length of the barricade minimum: 120 meters (3 x 40 m)
3. The width of the barricade: 1.4 to 1.5 m
4. High barricades: 1.5 to 1.7 m
5. Type / Thickness of thorns: Ripper Coil / 0.45 to 0.5 mm
6. The number of spirals: 55 of each coil (each 10 meters)
7. Razor wire: BTO-22, BTO-18, BTO-12
8. The coated layer of galvanized / Zeng :135-145 g /m²
Razor wire vehicle size and weight:
2190mm(W) X 4700mm(L) X 2220mm(H), one vehicle(with barbed wire) Vehicle net weight(without wire) : Around 2150kgs
Mobile Security Barrier is designed to provide rapid security fence protection; 75-1000 meter barriers of barbed tape concertina/razor coils can be deployed at incredible speed (300 meters in 20 seconds).
1.The current manually deployed wire is difficult to recover and is thus scrapped when no long
needed. With the Rapid Barrier System, the security fence wire can be recovered safely and neatly
2.Utilizing the Rapid Barrier System significantly reduces both man hours and manpower needed
to dispense and recover Razor wire barriers.
3.Barriers may either be manually or mechanically recovered for re-use.
4.Equipment is supplied to uplift and re-compress the barrier into modules, simple to handle and compact to store.
5.A single carrier unit can be quickly refilled to drop many kilometers of security fence barrier in a
short space of time.
6.Systems can be tailored to meet customers exact requirements.
Applications
Applications
Base camps, no-go areas, embassies, court rooms, military stop lines, streets, buildings, etc.
Lifespan
The same barriers have been deployed and recovered over 100 times.
Our company has advanced plastic pipe production equipment at domestic and overseas, with an annual production capacity of 80 million meters. It produces 20,000 tons of hot-dip galvanized steel wire and steel strands, 10,000 tons of line iron accessories and 35 million steel connecting sleeves. Products are widely used in communications, power, railway, highway, construction and other ancillary projects.
Any question kindly contact our sales manager Rill and Skype is rill1990, email is rill90@hotmail.com, mob or weichat is 86 18731838063 or RillJI. Glad to provide professional service for u.
