Stainless Steel Galvanized Barbed Wire Coiled Barbed Wire With PVC Coated

Stainless Steel Galvanized Barbed Wire Coiled Barbed Wire With PVC Coated

  • Stainless Steel Galvanized Barbed Wire Coiled Barbed Wire With PVC Coated
  • Stainless Steel Galvanized Barbed Wire Coiled Barbed Wire With PVC Coated
  • Stainless Steel Galvanized Barbed Wire Coiled Barbed Wire With PVC Coated
  • Stainless Steel Galvanized Barbed Wire Coiled Barbed Wire With PVC Coated
Stainless Steel Galvanized Barbed Wire Coiled Barbed Wire With PVC Coated
Product Details:
Place of Origin: ANPING,CHINA
Brand Name: Taiye
Certification: ISO9001 ISO140001
Model Number: B-04
Payment & Shipping Terms:
Minimum Order Quantity: 1 TON
Price: To be negotiated
Packaging Details: 1) In nude ; 2) In iron axletree; 3) In wood axletree ; 4) In wood pallet; 5)According to your requirement
Delivery Time: 3-7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Tons per day
Contact Now
Detailed Product Description
Material: Iron Wire,stainless Steel Wire Surface Treatment: PVC Coated Or No
Barb Distance: 7.5-15cm Barb Length: 1.5-3cm
Tesile Strength: 350-550Mpa Color: Silver Or Green
High Light:

razor barbed wire fencing

,

razor sharp wire

Hot dipped galvanized barbed wire for security fencing coiled barbed wire



Description



Raw material: high quality low carbon steel wire.Surface treatment process: galvanized, hot dip galvanized, plastic coating, plastic spraying.There are blue,green, yellow and other colors.



The reason that makes surface treatment is to strengthen anticorrosive strength, prolong service life.Galvanized wire as the name suggests the surface treatment is galvanized, can be galvanized and hot dip galvanized;PVC barbed wire for the surface treatment is PVC plastic treatment package, inside the barbed wire for black wire, electroplating wire and hot plating wire.

General Use: Barbed Wire is a kind of modern security fencing materials fabricated with high-tensile wire. Barbed Wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

Twisted Types: Single Twisted Barbed Wire, Double Twisted Barbed Wire, Traditional Twisted Barbed Wire.



* HIGH RESISTANCE: Thanks to the two galvanized twisted wires used, the barbed wire is strong and particularly resistant to traction and virtually unbreakable! Provides perfect protection to/from animals


* SAFETY: 4-point barbwire 1.7 to 2.7 mm thick (with coating), anti-rust & anti-corrosion.

* RELIABLE: The reel is equipped with a convenient carrying handle to protect you from injury during transport. The wire is durable and long-lasting without any particular maintenance.

* STABILITY: Once stretched, the barbed wire does not bend thus providing a protective barrier - Steel anti-climb spikes are placed at a distance of 10 cm, over its entire length

* VERSATILE: Whether to fence pastures, protect against passage, protect property or to keep animals away - Wire can be used for a variety of purposes. This barbed wire makes a fantastic anti-climb feature for cow or sheep fencing.



Specification



Material Q195/Q235
Wire Dia. 12GA,12.5GA,13GA
Treatment galvanized,pvc coated
Type

single strand barbed wire

double strand double twisted barbed wire

double strand common twisted barbed wire

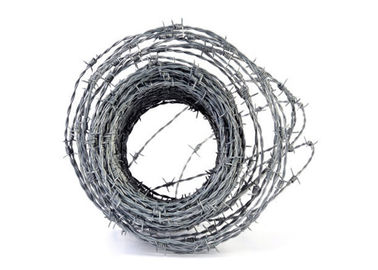

Packing 30-40kg/roll,300-400m/roll,inside waterproof paper,outside woven bag
Application Widely used in industry,agriculture,construction,transport,stadium,lawn,aquaculture



B.W.G. Barbs Spacing 3" Barbs Spacing 4" Barbs Spacing 5" Barbs Spacing 6"
12×12 6.0617 6.759 7.27 7.6376
12×14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.719 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.562
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.47.5 11.8553
14x14 10.4569 11.659 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.7034
15x15 13.8927 15.4942 16.6666 17.507
15-1/2x15-1/2 15.3491 17.1144 18.406 19.3386
