Military Field Silver Razor Blade Wire Fence 450mm 500mm Outside Diameter

Military Field Silver Razor Blade Wire Fence 450mm 500mm Outside Diameter

  • Military Field Silver Razor Blade Wire Fence 450mm 500mm Outside Diameter
  • Military Field Silver Razor Blade Wire Fence 450mm 500mm Outside Diameter
Military Field Silver Razor Blade Wire Fence 450mm 500mm Outside Diameter
Product Details:
Place of Origin: ANPING CHINA
Brand Name: Taiye
Certification: ISO9001 ISO140001
Model Number: 98
Payment & Shipping Terms:
Minimum Order Quantity: 1ton
Price: To be negotiated
Packaging Details: 1. Inner waterproof paper with woven bag outside 2. Be packed to carton or pallet.
Delivery Time: 5-8workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20tons per day
Contact Now
Detailed Product Description
Material: Galvanized & Stainless Steel Razor Blade Style: BTO-22/BTO-11/BTO-30/CBT-60/CBT-65
Diameter Of Coil Razor: 450mm/500mm/600mm/700mm/800mm/900mm/1000mm Weight Of Coil Razor: 6kg/7kg/8kg/9kg/10kg/11kg/12kg/25kg
Color: Silver Diameter Of Inner Razor Wire: 2.5mm
Thickness Of Razor Sheet: 0.45mm Application: Military Field, Prisons, Detention Houses, Government Buildings
High Light:

razor wire tape

,

razor sharp wire

Outside Diameter 450mm 500mm Coil Diameter Razor Blade Barbed Wire



Razor Blade Barbed Wire:

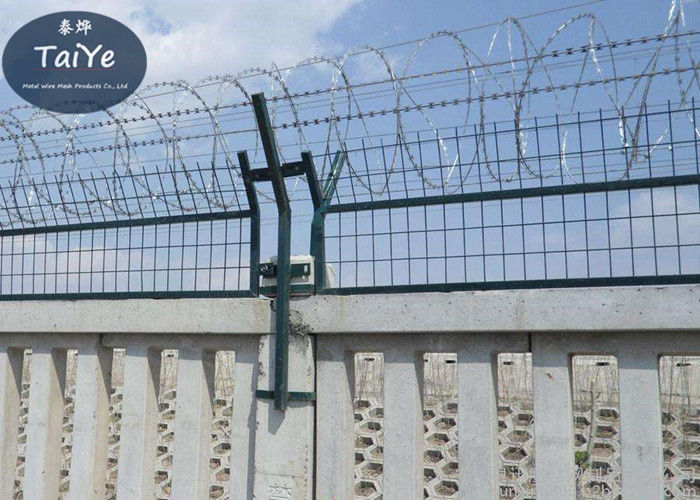

Razor barbed tape is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensilewire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

Concertina Coil Wire:
Concertina Coil Barbed Wire is also known as crossed razor barbed wire. Two pieces of stainless steel razor wire or zinc-coatedrazor wire are bound together by clips to make it stronger.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

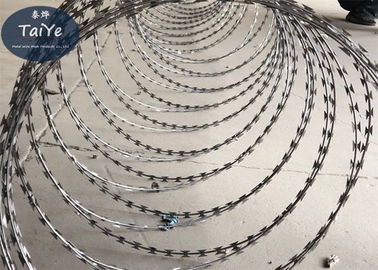

Single Coil Razor Wire:
Single coil barbed tape wire is installed without clips, it runs in natural loops on walls or fencings. Single coil razor wire is ostless and can be easily installed
Materials: galvanized steel iron wire ,stainless steel wire



1. high quality galvanized razor barbed wire Specifications



Reference No. Thickness Wire diameter Barbe length Barbe length Barbe spacing
BTO-10 0.5 +/- 0.05 2.5 +/- 0.1 10 +/- 1 13 +/- 1 26 +/- 1
BTO-12 0.5 +/- 0.05 2.5 +/- 0.1 15 +/- 1 15 +/- 1 26 +/- 1
BTO-18 0.5 +/- 0.05 2.5 +/- 0.1 18 +/- 1 15 +/- 1 33 +/- 1
BTO-22 0.5 +/- 0.05 2.5 +/- 0.1 22 +/- 1 15 +/- 1 34 +/- 1
BTO-28 0.5 +/- 0.05 2.5 28 15 45 +/- 1
BTO-30 0.5 +/- 0.05 2.5 30 18 45 +/- 1
CBT-60 0.6+/- 0.05 2.5 +/- 0.1 60 +/- 2 32 +/- 1 100 +/- 2
CBT-65 0.6 +/- 0.05 2.5 +/- 0.1 65 +/- 2 21 +/- 1 100 +/- 2



our factory supply free sample for you to check the quality



Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type





Type Razor Mesh(Diamond Hole) Razor Mesh(Square Hole)
Thickness of Sheet 0.5mm±0.05mm
Wire Diameter 2.5mm±0.1mm
Height 1.0m-2.4m
Length 2.0m-10.0m
Mesh Size

75mmx150mm

100mmx200mm

150mmx300mm

150mmx150mm

200mmx200mm

300mmx300mm

Special Specification can be produced according to your request



2. Materials: Galvanized steel wire, stainless steel wire, etc.



3. Weaving and Characteristics: Be woven into product;fastness and good appearance .



4. Uses: security razor wire is widely used by many countries in military field, prisons, detention houses,

government buildings and other national security facilities. It has apparently become the most popular

high-class fencing wire for not only military and national security applications, but also for cottage and

society fence, and other private buildings.



5. Kinds:



Crossed Razor Barbed Wire

Two pieces of stainless razor wire or zinccoated razor wire

were bounded together by clips to make,it more strength.

The spiral intersecting barbed wire presents an intersecing

shape after opening with beautiful feature and practicality.

Single coil barbed Wire

Single coil barbed tape wire is installed without clips,

it runs in natural loops on walls.Costless and can be easily installed.



Straight Razor Barbed Wire

There are many ways for straight type razor wire installing.

The straight type razor wire can be installed quickly,itcan not only save expenditure but also reach the result of

frightening and stopping.



Razor Wire Mesh Fence

Welded razor mesh fence is a new form of razor bared wire

mesh for security, it with practicality blade and the feature

looks very beautiful. It can be used for guard net offence ,

doors and windows and alsocan be used in military.

The specification can be designed as the customers’ need.





6. high quality galvanized razor barbed wire Processing:

high quality galvanized razor barbed wire is usually made of galvanized steel blade or stainless steel blade.

Two pieces of stainless steel razor wire or zinccoated razor wire can be bounded together

by clips to make it stronger. The spiral intersecting barbed wire presents anintersecting

shape after opening with beautiful outlook and practical property.



7. high quality galvanized razor barbed wire QC

Professional strict QA/QC Inspector track each stage of production.



8. high quality galvanized razor barbed wire Package

1) Plastic film inside, outside weaving bag.

2)Plastic film inside, outside hessian bag.

3) Paper carton packing



9.Trade Terms



Trade terms: FOB, CNF, CIF,



Payment terms: 30%T/T as deposit , L/C, Western Union,



MOQ:20tons



Port: TIANJIN



Sample time: 1-3days



Lead time: 10days depend on the final order quantity



Shipment: By sea or airport



Supply capability:9000tons/month



Sample availability: Yes



our service



1. 15 days after receiving the deposit shipment

2. We will choose high quality low price of the shipping company

3. Loading the goods, we will track all the way, to ensure product safety, quick to arrive at the designated ports

4. Arrival of the goods, we will provide installation instructions and subsequent technical guidance

5. Company for products and accessories, for a long time to be able to provide various

products accessories at cost to the customer at any time



Above information just for reference, other specification we can according to your request,



if you have any questions about our razor barbed wire, pls contact us by email.



Anping TaiYe Wire Mesh Products Co.,LTD is a professional manufacturer and exporter of series wire mesh products.We mainly produce and supply the following products: Concertina razor wire, Razor wire flat wrap, Razor mesh;Wall spike, Security wall spike, Anti climb wall spike, Fence spike; Mobile security barrier, Rapid deployment barrier Concertina, Mobile razor wire security barrier; barbed wire, PVC coated barbed wire, Double twisted barbed wire; Razor mesh, Razor wire mesh fencing: Palisade fence, Welded mesh fence, Euro fence, Chain Link fence and other wire mesh products. Dozens of various kinds in about one thousand specifications. Besides supplying the domestic market, we have also established good business relationship with many countries such as European countries, the USA, Middle –east, Southeast Asia and some other countries and regions.
