Anping Taiye Metal Wire Mesh Products Co.,Ltd
Factory in Razor Wire over 10 years. Email: rill@aptaiye.com Mob:86-18731838063
 |
| Place of Origin: | ANPING CHIINA |
| Brand Name: | Taiye |
| Certification: | ISO9001 ISO140001 |
| Model Number: | R-18 |
| Minimum Order Quantity: | 1Ton |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Inner waterproof paper with woven bag outside, 50 coils be a bundle. |
| Delivery Time: | 3-7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 tons per day |
| Material: | Galvanized,iron,stainless Steel,PVC Coated | Inner Wire Dia: | 2.5-2.7mm |
|---|---|---|---|
| Razor Thickness: | 0.6±0.05mm | Razor Barb Length: | 10-65mm |
| Razor Barb Spacing: | 26-100mm | Razor Barb Width: | 13-32mm |
| Razor Type: | Cross Razor Or Single Razor | ||
| High Light: | razor wire tape,razor sharp wire |
||

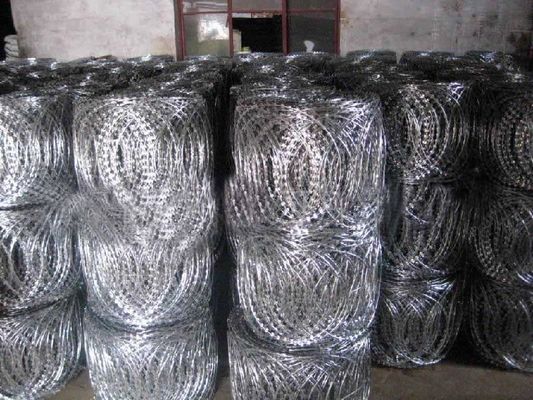

960mm Coil Diameter Concertina Razor Blade Barbed Wire Straight Razor Wire
1.Product introduction
Razor Barbed Wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.
* Construct a high-security perimeter around your property with this razor wire!
* This razor wire, suitable for all types of outdoor use, will be a perfect choice for protecting your garden or commercial
property.
* The design with blades keeps unwanted guests out of your garden.
* Made of high-quality galvanized steel, our razor wire is weather- and water-resistant, and highly durable.
* It is ideal for commercial as well as residential use.
2.Common specifications
| Specification |
Thickness
(mm)
|
Wire Dia.
(mm)
|
Barb Length
(mm)
|
Barb Width
(mm)
|
Barb spacing
(mm)
|
| BTO-10 | 0.45±0.05 | 2.0-3.0 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.45±0.05 | 2.0-3.0 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.45±0.05 | 2.0-3.0 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.45±0.05 | 2.0-3.0 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.45±0.05 | 2.0-3.0 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.45±0.05 | 2.0-3.0 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.45±0.05 | 2.0-3.0 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.45±0.05 | 2.0-3.0 | 65±2 | 21±1 | 100±2 |
| Concertina Coil Specification | |||||||
| Coil Diameter | 300mm | 450mm | 730mm | 730mm | 980mm | 980mm | 1250mm |
| (12inch) | (18inch) | (28inch) | (36inch) | (36inch) | (36inch) | (50inch) | |
| Recommended Stretch Length | 4m | 10m | 15-20m | 10-12m | 10-15m | 8m | 8m |
| Coil Diameter When Stretched | 260mm | 400mm | 600mm | 620mm | 820mm | 850mm | 1150mm |
| Spiral Turns Per Coil | 33 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 |
| Clips Per Spiral | 3 | 3 | 3 | 5 | 5 | 7 | 9 |
| Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
3.Popular specification
Most Population Hot Dipped Galvanized BTO22 Razor Barbed Wire for Shipping Protect is named as its Hot Dipped Galvanized Material and the Razor blade style is BTO22.
From the material it divided into Electric Galvanized Razor Barbed Wire, Hot Dipped Galvanized Razor Barbed Wire, High Galvanized Razor Barbed Wire.
Compare the three material quality:
Electric Galvanized Razor Barbed Wire<Hot Dipped Galvanized Razor Barbed Wire<High Galvanized Razor Barbed Wire.
