Place of Origin: | ANPING CHINA |
Brand Name: | Taiye |
Certification: | ISO9001 |
Model Number: | 104 |
Minimum Order Quantity: | 1 tons |
---|---|
Price: | To be negotiated |
Packaging Details: | 1.Be packed into carton. 2, Inner waterproof paper with woven bag outside, 50 coils be a bundle by strip. |
Delivery Time: | 3-8 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20tons per day |
Material: | Galvanized( Electric Galvanized, Hot Dipped Galvanized, High Galvanized) Epoxy, Electrophoretic, Stainless Steel(304, 316, 316L) | Razor Blade Style: | CBT-60 |
---|---|---|---|
Razor Thickness: | 0.5±0.05mm | Inner Wire Dia.: | 2.5±0.1mm |
Razor Barb Length: | 60±1mm | Razor Barb Width: | 32±1mm |
Razor Barb Spacing: | 100±2mm | Package: | Packed Into Carton Or As Request |
High Light: | razor wire tape,barb wire strip |
Military Use Concertina CBT60 Razor Barbed Wire Exported Singapore
Material: Galvanized Steel Sheet and wire or Stainless Steel Sheet and Wire, PVC(Epoxy), Electrophoretic
1. Galvanized Steel Sheet and Wire
① Hot dipped galvanzied steel sheet with electric galvanized wire
② Hot dipped galvanized steel sheet with Hot dipped Galvanized wire ( most popular)
③ High galvanized steel sheet with high galvanized wire
2. Stainless Steel Sheet and Wire
430,304, 316, 316L
CBT-60 Razor Blade Specification
Razor Blade Style:CBT-60
Razor Thickness:0.5±0.05mm
Inner wire Dia.:2.5±0.1mm
Razor Barb Length: 60±1mm
Razor Barb Width: 32±1mm
Razor Barb Spacing: 100±2mm
CBT-60 Razor Type Wire Specification
The lengh and the diameter of the coil can be desighed according to the customers' need.
Reference No. | Thickness | Wire diameter | Barbe length | Barbe length | Barbe spacing |
BTO-10 | 0.5 +/- 0.05 | 2.5 +/- 0.1 | 10 +/- 1 | 13 +/- 1 | 26 +/- 1 |
BTO-12 | 0.5 +/- 0.05 | 2.5 +/- 0.1 | 15 +/- 1 | 15 +/- 1 | 26 +/- 1 |
BTO-18 | 0.5 +/- 0.05 | 2.5 +/- 0.1 | 18 +/- 1 | 15 +/- 1 | 33 +/- 1 |
BTO-22 | 0.5 +/- 0.05 | 2.5 +/- 0.1 | 22 +/- 1 | 15 +/- 1 | 34 +/- 1 |
BTO-28 | 0.5 +/- 0.05 | 2.5 | 28 | 15 | 45 +/- 1 |
BTO-30 | 0.5 +/- 0.05 | 2.5 | 30 | 18 | 45 +/- 1 |
CBT-60 | 0.6+/- 0.05 | 2.5 +/- 0.1 | 60 +/- 2 | 32 +/- 1 | 100 +/- 2 |
CBT-65 | 0.6 +/- 0.05 | 2.5 +/- 0.1 | 65 +/- 2 | 21 +/- 1 | 100 +/- 2 |
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 8M | CBT-65 | Single coil |
500mm | 41 | 10M | CBT-65 | Single coil |
700mm | 41 | 10M | CBT-65 | Single coil |
960mm | 53 | 13M | CBT-65 | Single coil |
500mm | 102 | 16M | BTO-10.15.22 | Cross type |
600mm | 86 | 14M | BTO-10.15.22 | Cross type |
700mm | 72 | 12M | BTO-10.15.22 | Cross type |
800mm | 64 | 10M | BTO-10.15.22 | Cross type |
960mm | 52 | 9M | BTO-10.15.22 | Cross type |
CBT-60 Razor Barbed Wire has two kinds types:
1. Single Coil (without clips)
Most popular Specification: Dia.450mmx5kg/coil be packed into carton
2. Cross Type(with clips)
Most popular Specification: Dia.450mmx10kg/coil be packed inner waterproof paper with woven bag outside, then 50 coils be a bundle with strips
Conventional Weight and Diameter of per coil Razor: 500mmx10kg/coil which cover meter 10 meters (when spacing meter is 0.35-0.4meter)
Package:

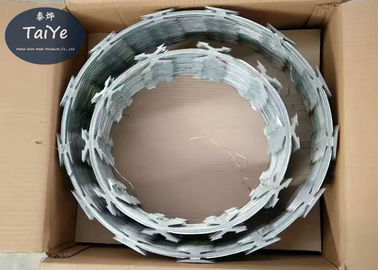

1. Be packed into carton (single coil most popular)
2. Inner waterproof paper with woven bag outside, 50 coils be a bundle with strips (cross type most popular)
3. 50coils be a pallet.
4. as customers' requirement

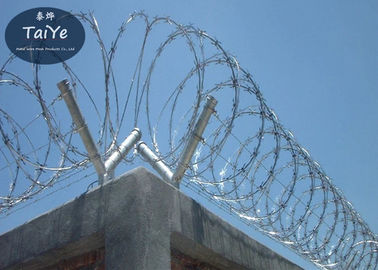

It plays the role of protection in mines, gardens and apartments, frontier and sentry defence, and enclosure of prisons.
Our company has advanced production equipment, first-class technology and complete quality management system. We mainly produce and supply the following products: Concertina razor wire, Razor wire flat wrap, Razor mesh;Wall spike, Security wall spike, Anti climb wall spike, Fence spike; Mobile security barrier, Rapid deployment barrier Concertina, Mobile razor wire security barrier; barbed wire, PVC coated barbed wire, Double twisted barbed wire; Razor mesh, Razor wire mesh fencing: Palisade fence, Welded mesh fence, Euro fence, Chain Link fence and other wire mesh products. Dozens of various kinds in about one thousand specifications. Besides supplying the domestic market, we have also established good business relationship with many countries such as European countries, the USA, Middle –east, Southeast Asia and some other countries and regions.
Any question kindly contact our sales manager Rill.
Skype is rill1990,
email is rill90@hotmail.com or rill@aptaiye.com,
mob or weichat is 86 18731838063 or RillJI.
Glad to provide professional service for u.
