Place of Origin: | ANPING CHIINA |
Brand Name: | Taiye |
Certification: | ISO9001 ISO140001 |
Model Number: | R-20 |
Minimum Order Quantity: | 1Ton |
---|---|
Price: | To be negotiated |
Packaging Details: | Inner waterproof paper with woven bag outside, 50 coils be a bundle. |
Delivery Time: | 3-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20 tons per day |
Material: | Galvanized,iron,stainless Steel,PVC Coated | Inner Wire Dia: | 2.5-2.7mm |
---|---|---|---|
Razor Thickness: | 0.6±0.05mm | Razor Barb Length: | 10-65mm |
Razor Barb Spacing: | 26-100mm | Razor Barb Width: | 13-32mm |
Razor Type: | Cross Razor Or Single Razor | ||
High Light: | razor wire tape,razor sharp wire |
Iron Wire Material and barbed wire Razor Type for Fence Electrical Welded
1.Product introduction

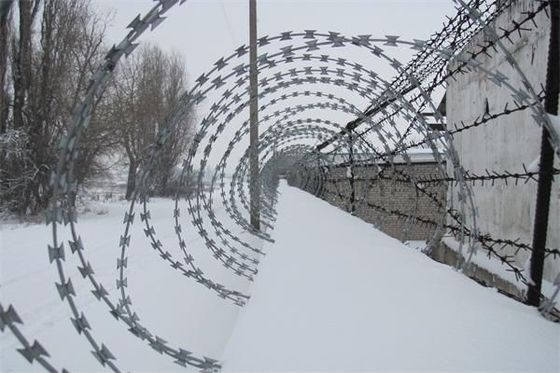

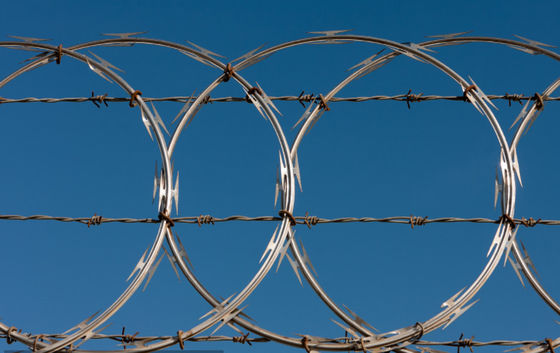

Razor barbed wire, is a new type of protective nets.Blade barbed wire has beautiful, economical and practical, good resistance, construction convenience and other outstanding features, at present, razor wire has been widely used in many countries of industrial and mining enterprises, garden apartments, border posts, military areas, prisons, detention centers, government buildings and other national security facilities.
Conductor material: high quality, hot dip galvanized high carbon steel wire, stainless steel wire, etc.
Blade material: high quality, hot dip galvanized steel plate, stainless steel plate.
Process: it USES the steel plate (dao) package attached stamped on the hot dip galvanized steel wire (core), made the blade sharp Angle of galvanized steel or stainless steel sheet, high tensile steel wire do a mix of conducto
Features:
Razor wire and stinging scraper type, is a kind of protective developed in recent years, the capability of isolation of new fence products. A sharp knife stab type by double occurs after snapping into shape, are beautiful and chilling. Has played a very good deterrent effect. Beautiful and practical
Installation of Razor Wire (flat profile) is particularly simple. It can either be supported by clipping or wire tying to the surface part way up or alternatively by fitting brackets to the existing fence posts and then running a line of support wire through the top hole of the bracket and weaving it through the Razor Wire.
Either way we can supply you with the necessary vertical uprights, straining wire and bolting to enable self fit to a fence or wall.
2.Common specifications
Specification |
Thickness
(mm)
|
Wire Dia.
(mm)
|
Barb Length
(mm)
|
Barb Width
(mm)
|
Barb spacing
(mm)
|
BTO-10 | 0.45±0.05 | 2.0-3.0 | 10±1 | 13±1 | 26±1 |
BTO-12 | 0.45±0.05 | 2.0-3.0 | 12±1 | 15±1 | 26±1 |
BTO-18 | 0.45±0.05 | 2.0-3.0 | 18±1 | 15±1 | 33±1 |
BTO-22 | 0.45±0.05 | 2.0-3.0 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.45±0.05 | 2.0-3.0 | 28±1 | 15±1 | 45±1 |
BTO-30 | 0.45±0.05 | 2.0-3.0 | 30±1 | 18±1 | 45±1 |
CBT-60 | 0.45±0.05 | 2.0-3.0 | 60±2 | 32±1 | 100±2 |
CBT-65 | 0.45±0.05 | 2.0-3.0 | 65±2 | 21±1 | 100±2 |
Concertina Coil Specification | |||||||
Coil Diameter | 300mm | 450mm | 730mm | 730mm | 980mm | 980mm | 1250mm |
(12inch) | (18inch) | (28inch) | (36inch) | (36inch) | (36inch) | (50inch) | |
Recommended Stretch Length | 4m | 10m | 15-20m | 10-12m | 10-15m | 8m | 8m |
Coil Diameter When Stretched | 260mm | 400mm | 600mm | 620mm | 820mm | 850mm | 1150mm |
Spiral Turns Per Coil | 33 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 |
Clips Per Spiral | 3 | 3 | 3 | 5 | 5 | 7 | 9 |
Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
300mm | 33 | 4-5m | CBT-60.65 | Single coil |
450mm | 33 | 7-8m | CBT-60.65 | Single coil |
500mm | 56 | 12-13m | CBT-60.65 | Single coil |
700mm | 56 | 13-14m | CBT-60.65 | Single coil |
960mm | 56 | 14-15m | CBT-60.65 | Single coil |
450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
