Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm

Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm

  • Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm
  • Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm
  • Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm
  • Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm
Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm
Product Details:
Place of Origin: China
Brand Name: Taiye
Certification: ISO9000
Model Number: TD2
Payment & Shipping Terms:
Minimum Order Quantity: 200 Rolls
Price: To be negotiated
Packaging Details: Waterproof Paper inside and woven bags outside
Delivery Time: Within 15 days or as your need
Payment Terms: D/A, L/C, T/T, Western Union
Supply Ability: 50 Tons per week
Contact Now
Detailed Product Description
Product Name: Hot Dipped Galvanized Razor Barbed Wire Coil Diameter 500mm For Fence Wire Diameter: 2.5mm
Material: Low Carbon Steel Wire Or Ss Wire Type: BTO-10,18,22,28,30. CBT-60,65
Sheet Thickness: 0.5mm Weight: 5-25kg/roll
Packing: Waterproof Paper Inside And Woven Bags Outside
High Light:

spiral razor wire

,

zinc coated razor wire



Hot Dipped Galvanized Razor Barbed Wire Coil Diameter 500mm For Fence



Product Description


Razor barbed wire is also named concertina coils or razor type barbed wire. It is a kind
of modern security fencing materials with better protection and fencing strength made
of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp
blades and strong core wire, razor barbed wire has the features of secure fencing, easy
installation, age resistance and other properties.

1. Material: High carbon steel, galvanized steel sheet and wire, stainless steel sheet
and wire. Usually, hot dipped galvanized razor barbed wire is popular in the market.

2.Razor Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-30,CBT-60,CBT-65.

3.Razor wire types: straight line razor wire, single coil concertina wire, double coil wire,
welded razor mesh fence.
Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm 0
4.Specification


Blade

specification

Blade

thickness

Cor.

Wire diameter

Blade

length

Blade

width

Blade

space

BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2

EX. dia loops Standard covering length

Production

model

remarks
450mm 33 8m CBT-65 Single coil
500mm 41 10m CBT-65 Single coil
700mm 41 10m CBT-65 Single coil
960mm 53 13m CBT-65 Single coil
500mm 102 16m BTO-12,18,22 Cross type
600mm 86 14m BTO-12,18,22 Cross type
700mm 72 12m BTO-12,18,22 Cross type
800mm 64 10m BTO-12,18,22 Cross type
960mm 52 9m BTO-12,18,22 Cross type

Material Hot-dipped galvanized ,Stainless steel 304, stainless steel 430
Blade type BTO-10, BTO-12, BTO-22,BTO-28,BTO-30,CBT-60,CBT-65
Roll diameter 450mm, 500mm, 600mm, 700mm, 730mm, 750mm, 800mm. 950mm , 1000mm and so on

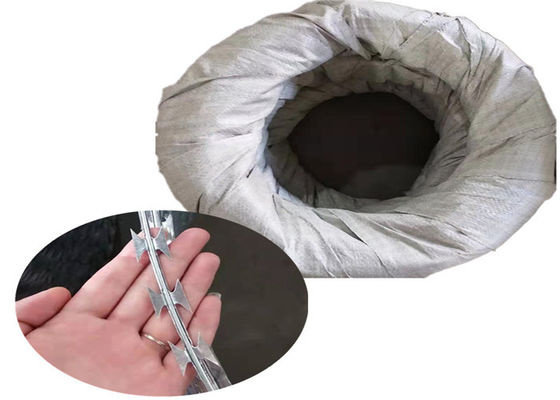

Packing Plastic weaving bags , pallets , carton box
Payment terms 30% advance , the balance 70% after receipt of copy of BL.
Remarks Especial Size is customized as per client's requirement

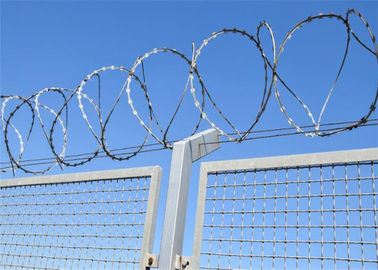

Application: Widely used in military, field, prison, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.

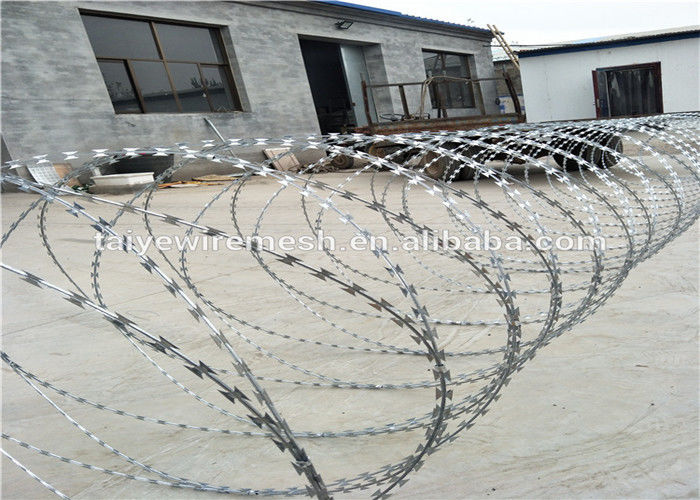

Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm 1

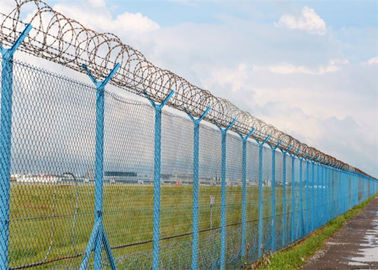

Fence Safety Galvanized Razor Wire , Razor Barbed Wire Coil Diameter 500mm 2
