Place of Origin: | ANPING CHINA |
Brand Name: | Taiye |
Certification: | ISO9001 ISO140001 |
Model Number: | 83 |
Minimum Order Quantity: | 1ton |
---|---|
Price: | To be negotiated |
Packaging Details: | 1. Inner waterproof paper with woven bag outside 2. Be packed to carton or pallet. |
Delivery Time: | 5-8workdays |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20tons per day |
Material: | Aluminum Alloy | Razor Blade Style: | BTO-22/BTO-11/BTO-30 |
---|---|---|---|
Diameter Of Coil Razor: | 450mm/500mm/600mm/700mm/800mm/900mm/1000mm | Weight Of Coil Razor: | 6kg/7kg/8kg/9kg/10kg/11kg/12kg/25kg |
Color: | Silver | Diameter Of Inner Razor Wire: | 2.5mm |
Thickness Of Razor Sheet: | 0.45mm | ||
High Light: | razor sharp wire,barb wire strip |

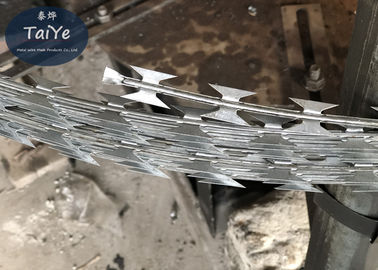

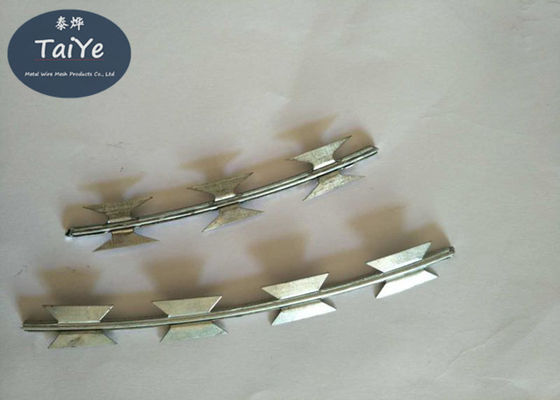

Low Price Concertina Razor Blade Barb Wire With Clips Fence For Nigeria
1. Material:
a. Core wire material: galvanized wire and stainless steel wire.
b. Blade material: galvanized sheet and stainless steel sheet.
2. Specification:
1> Razor thickness:0.5mm
2> Wire diameter:2.5mm
3> Razor width : 15 mm
4> Razor length: 22 mm
5> barb spacing: 26mm--100mm
6> Outside diameter of roll:600 mm
7> Number of loops:33--102
8> Standard spreading length per roll:8m --16m
9> Razor barbed type : cross type
10> Packing : compression rolls,water-proof paper inside, woven bag outside or in carton
3. Features: razor barbed wire is also named Tape Wire, Razor Tape Wire, Barbed Tape or Barbed Tape Wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Barbed Tape Wire Specification | ||||
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
4500mm | 33 | 8M | CBT-65 | Single Coil |
500mm | 41 | 10M | CBT-65 | Single Coil |
700mm | 41 | 10M | CBT-65 | Single Coil |
960mm | 53 | 13M | CBT-65 | Single Coil |
500mm | 102 | 16M | BTO-10,15,22 | Cross Type |
600mm | 86 | 14M | BTO-10,15,22 | Cross Type |
700mm | 72 | 12M | BTO-10,15,22 | Cross Type |
800mm | 64 | 10M | BTO-10,15,22 | Cross Type |
900mm | 52 | 9M | BTO-10,15,22 | Cross Type |
Ref. NO. | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing | |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 | |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 | |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 | |
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 46±1 |
4. Application:
Razor barbed wire is widely used by in military field, prisons, detention houses, government buildings and other national security facilities; it is also used as fence for cottage and society fence, and other private buildings.
Anping TaiYe Wire Mesh Products Co.,LTD is a professional manufacturer and exporter of series wire mesh products.We mainly produce and supply the following products: Concertina razor wire, Razor wire flat wrap, Razor mesh;Wall spike, Security wall spike, Anti climb wall spike, Fence spike; Mobile security barrier, Rapid deployment barrier Concertina, Mobile razor wire security barrier; barbed wire, PVC coated barbed wire, Double twisted barbed wire; Razor mesh, Razor wire mesh fencing: Palisade fence, Welded mesh fence, Euro fence, Chain Link fence and other wire mesh products. Dozens of various kinds in about one thousand specifications. Besides supplying the domestic market, we have also established good business relationship with many countries such as European countries, the USA, Middle –east, Southeast Asia and some other countries and regions.
Any question kindly contact our sales manager Rill.
Skype is rill1990,
email is rill90@hotmail.com or rill@aptaiye.com,
mob or weichat is 86 18731838063 or RillJI.
Glad to provide professional service for u.
