Cbt-60 Cbt-65 Anti Climb 0.5mm Razor Barbed Wire

Cbt-60 Cbt-65 Anti Climb 0.5mm Razor Barbed Wire

  • Cbt-60 Cbt-65 Anti Climb 0.5mm Razor Barbed Wire
  • Cbt-60 Cbt-65 Anti Climb 0.5mm Razor Barbed Wire
Cbt-60 Cbt-65 Anti Climb 0.5mm Razor Barbed Wire
Product Details:
Place of Origin: China
Brand Name: TAIYE
Certification: Quality Authentication
Model Number: RBW-167
Payment & Shipping Terms:
Minimum Order Quantity: 26 tonns
Price: factory price
Packaging Details: in rolls in bulk in containers
Delivery Time: 7 - 28days
Payment Terms: T/T
Supply Ability: 26 tons per three days
Contact Now
Detailed Product Description
Material: Low Carbon Steel Surface Treatment: Electric Galvanised, Hot Dipped Galvanised, Pvc Coated
Wire Dia: 10#-18# Stretch Length: 5-15m
Coil Diameter: 450-1000mm Blade Thickness: 0.5mm Or As Ur Request
High Light:

0.5mm razor barbed wire


cbt-60 razor barbed wire


cbt-65 razor barbed wire

Different Baldes CBT-60 CBT-65 Razor Wire Blade Wire Silver Color Anti Climb



Razor Blade Wire Production Process


The CBT60 spiral razor wire is formed by a thorn rope, and the connection of the interlocking needs to be fixed with a buckle to enhance the stability and fastness of the razor wire. It is protected by its own annular and blade natural wrapping, with dimensions of 1 inch and 2 inches, etc.

The thickness of the CBT65 razor wire roller dia is 450-960mm, the diameter of the inner wire is 2.5, the length of the knife is 65, the width is 21, and the spacing is 100. These two types of blade wire can be used for safety protection in the community wall, playground boundary and other places.



Razor Blade Wire Production Process


1.The stamping forming of the blade is the key
The key step in the production of blade sprocket is to press different types of blades according to customers' requirements, such as BTO-10,BTO-22,CBT-60,CBT-65, etc., and then collect them to ensure the production of the next blade sprocket.


2.How to wrap wire
Wrapped wire is the second key steps of the production blade thorn rope, just as its name implies something wrapped yarn is wrapped in wire, we here wrapped yarn is put in advance in sheet stamping good blade, after wrapped tightly wrapped in wire machine together, make it difficult to separate, we went to this step completes the blade razor wire of semi-finished products.


3.How to cut the clip with the blade
Every two adjacent circles of spiral blade are fixed together by manual or small instruments with blade rope connecting clips at intervals of 120 degrees or 72 degrees, forming a beautiful interlocking ring when the installation is unfolded.At this time, we do not need to carry out packaging, we will proceed to the next step of plastic spray.After that, we will pack the blade and wire, and then send it to the logistics to the customer.



Razor Blade Wire Installation


1. Drill holes in the wall and fix the V-bracket with expansion screws (3.5m to install a V-bracket)

2.The blade barbed wire is fixed to the V-shaped bracket, and the steel barbed wire is passed through the middle of the blade barbed wire to support the blade barbed wire.

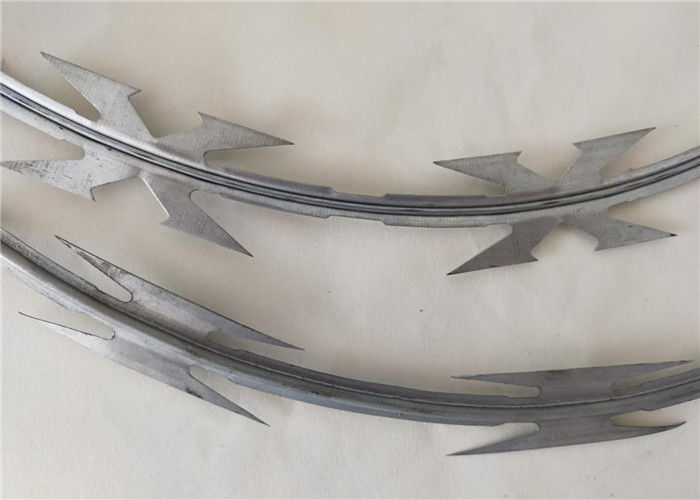

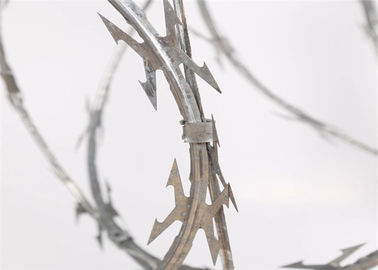

Razor Blade Wire Picture


Cbt-60 Cbt-65 Anti Climb 0.5mm Razor Barbed Wire 0
