Name: 500mm Coil Diameter Concertina Razor Barbed Wire Weight Per Meter
Brand: Taiye
SKU: 396
Rating: 4.7 (154 reviews)

Home Products Razor Barbed Wire

500mm Coil Diameter Concertina Razor Barbed Wire Weight Per Meter

Product Details:

Place of Origin:	Hebei China
Brand Name:	Taiye
Certification:	Test Report
Model Number:	396

Payment & Shipping Terms:

Minimum Order Quantity:	1ton
Price:	Discussed
Packaging Details:	Inner waterproof paper with woven bag outside
Delivery Time:	within 10days after receiving ur deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability:	20tons per day

Contact Now

Detailed Product Description

Named:	500mm Coil Diameter Concertina Razor Barbed Wire Weight Per Meter	Where Used:	Used On The Top Of Fence And Wall
Which Material:	Electric Galvanized Hot Dipped Galvanized SS304	Roll Meters:	Based On Roll Weight
Weight Of Per Roll:	Can Be Done As Requirements Usually Is 10kg	Coil Diameter:	500mm
Highlight:	razor wire tape , razor sharp wire

500mm Coil Diameter Concertina Razor Barbed Wire Weight Per Meter

First item let's know the Razor Wire material as following:

Electric Galvanized is a kind of Razor Wire Material which is the cheaper cost. Razor Wire Material including:

1. Inner Electric Galvanized Wire with Hot Dipped Galvanized Sheet

2. Inner Hot Dipped Galvanized Wire with Hot Dipped Galvanized Sheet

3. High zinc coating material, and the data of zinc coating can be choose by clients

4. 304 Stainless Steel Wire and Blade Sheet

Second item is Razor Barbed Wire Coil Diameter, So we know Concertina Razor 500mm Coil Diameter is the Coil Diameter Data.

Also has following coil diameter data for u check.


			Razor Wire Roll Diameter With Clips Choose


			450mm
			500mm
			600mm
			700mm
			750mm
			800mm
			900mm
			1000mm


			3 clips
			3 clips
			3 clips
			3 clips
5 clips

			3 clips
5 clips

			3 clips
5 clips

			3 clips
5 clips

			3 clips
5 clips



			Usually clients choose roll diameter 500mm used on the top of fence or wall



500mm Coil Diameter Concertina Razor Barbed Wire Weight Per Meter so we know except the coil diameter affect the length, also need to confirm the Razor Barbed Wire Blade Type and Per Roll Weight. Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them, and the length will be more longer. For example:
1. 500mmx10kg/roll
Cover length is 30cm between each loop, then 10kg can get 10-12m
2. 500mmx10kg/roll

Cover length is 15cm between each loop, then 10kg can get 6-7m

The Following table is 5 kinds of Razor Barbed Wire Blade Type


			Razor Wire Blade Type

			BTO
(Barbed Tape Obstacle)

			11

			22

			30

			CBT
(Barbed Tape Concertina)

			60

			65

			Standard Styles products are shown in the tables above, specification are available on requirements.

500mm Coil Diameter Concertina Razor Barbed Wire Weight Per Meter Direction for use

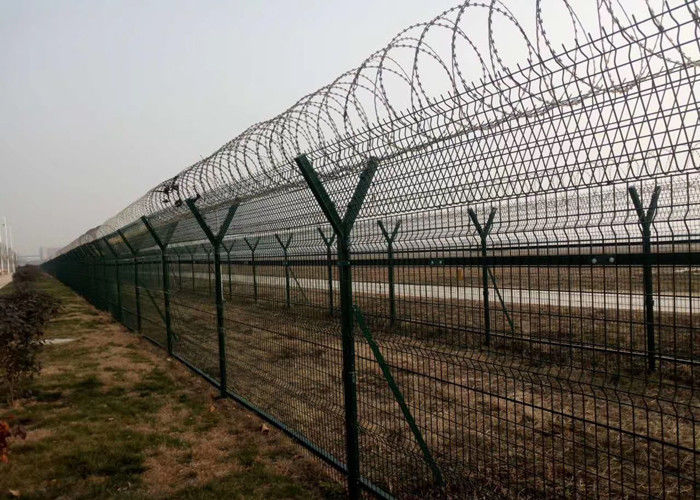

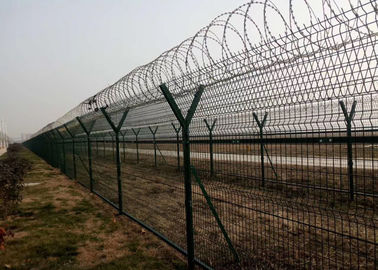

Concertina Razor Wire usually attached on "Y" or "V" support and should be mounted razor wire with wire diameter Ф=4mm/3mm/2.8mm in circles with razor wire coil diameters Ф=500mm, with distance between circles 150mm-400mm.
500mm Coil Diameter Concertina Razor Barbed Wire Weight Per Meter Paking and shipping
1. Each roll with inner waterproof paper and woven bag outside, then 50rolls or 100roll be a bundle by metal strip.
2. Be bundled razor wire put on pallet.
3. Bulk razor wire put into cartons.
4. Packaged razor wire barrier into wooden case.
5. Bulk waterproof paper inner with woven bag outside razor rolls loaded in 40'HQ/27ton

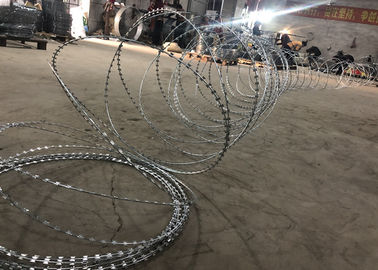

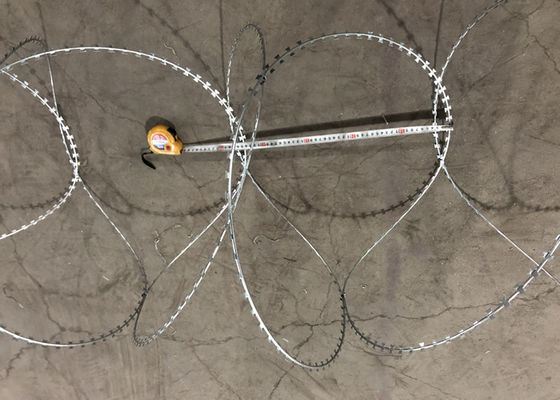

Attached the test meters of 500mm Coil Diameter Concertina Razor Barbed Wire Weight Per Meter in factory workshop pic for u clearly.
