Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence

Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence

  • Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence
  • Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence
  • Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence
Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence
Product Details:
Place of Origin: China
Brand Name: Taiye
Certification: ISO9000
Model Number: TB3
Payment & Shipping Terms:
Minimum Order Quantity: 200 Rolls
Price: To be negotiated
Packaging Details: Waterproof Paper inside and woven bags outside
Delivery Time: Within 15 days or as your need
Payment Terms: D/A, L/C, T/T, Western Union
Supply Ability: 50 Tons per week
Contact Now
Detailed Product Description
Product Name: Razor Barbed Wire Fence CBT- 65 Hot-dipped Galvanized Razor Wire Mesh Fence Wire Diameter: 2.5mm
Material: Hot-dipped Galvanized Iron Wire Type: CBT-65
Sheet Thickness: 0.5mm Razor Width: 21mm
Razor Length: 65mm Razor Distance: 100
Weight: 5-25kg/roll Packing: Waterproof Paper Inside And Woven Bags Outside
High Light:

concertina razor wire

,

galvanized razor wire





Razor Barbed Wire Fence CBT- 65 Hot-dipped Galvanized Razor Wire Mesh Fence





Product Description


Razor Barbed Wire Application in Fence mainly serves in protecting of grass boundary, railway, highway and also widely used in military, jail, industry, agriculture, animal husbandry, dwelling house, plantation for fencing.

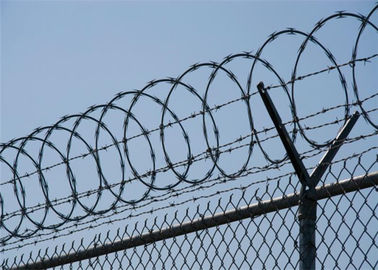

Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence 0
Reference number
Thickness(mm)
Wire Dia(mm)
Barb length
Barb width
Barb spacing
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±1





Blade

specification

Blade

thickness

Cor.

Wire diameter

Blade

length

Blade

width

Blade

space

BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2



EX. dia loops Standard covering length

Production

model

remarks
450mm 33 8m CBT-65 Single coil
500mm 41 10m CBT-65 Single coil
700mm 41 10m CBT-65 Single coil
960mm 53 13m CBT-65 Single coil
500mm 102 16m BTO-12,18,22 Cross type
600mm 86 14m BTO-12,18,22 Cross type
700mm 72 12m BTO-12,18,22 Cross type
800mm 64 10m BTO-12,18,22 Cross type
960mm 52 9m BTO-12,18,22 Cross type


Feature


For Concertina Wire ,we have many kinds:

Single coil Razor Wire ,Crossed Razor Wire,Flat warp razor wire. ,Razor Wire fence



Single Coil Razor Wire

Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.



Crossed Razor Wire Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.



Flat warp razor wire

Flat warp razor wireis a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.



Razor Wire Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very beautiful.It can be used for guard net of fence ,doors and windows and also can be used in military.The specification can be designed as the customers' need.

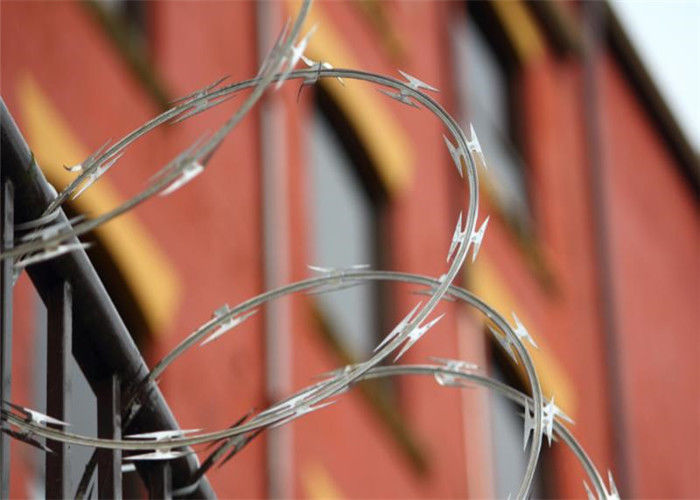

Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence 1

Application: Widely used in military, field, prison, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.


Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence 2


Packing

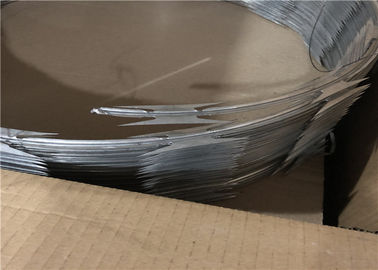

Outdoor CBT - 65 Razor Barbed Wire Fence Hot Dipped Galvanized Mesh Fence 3



Tags:  450mm Coil Diameter Razor Wire             CBT-65 Razor Wire
