Anping Taiye Metal Wire Mesh Products Co.,Ltd
Factory in Razor Wire over 10 years. Email: rill@aptaiye.com Mob:86-18731838063
 |
| Place of Origin: | China |
| Brand Name: | Taiye |
| Certification: | ISO9001 ISO140001 |
| Model Number: | C-01 |
| Minimum Order Quantity: | 1 kg |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | 1.woven bag 2.carton 3.wooden box |
| Delivery Time: | 5-10 days as your quantity |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 kg per day |
| Material: | Iron,Stainless Steel | Surface Treatment: | Galvanized |
|---|---|---|---|
| Length: | 20-55mm | Apply To: | BTO-10,18,22,28,30 CBT-60,65 |
| Size: | Common,little,middle,big,bigger,biggest | Color: | Silver |
| High Light: | barbed wire fittings,galvanized steel wire rope |
||

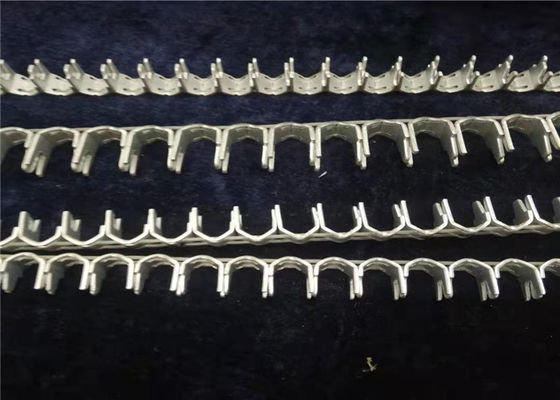

Dovetail straining clips razor clumps on razor wire and welded gabion fence
1.Razor Wire Clips Description
We all know that there are two kinds of razor wire: crossed razor wire and single razor wire, and the essential difference between the two lies in the flexible use of the clips. Clasp is also divided into large, medium and small size, material is also divided into galvanized and stainless steel, and the combination of blade type, so the formation of a unique double helix shape. The clips and the barb of the blade play an equally important role.
2.Razor Wire Clips Application
a.Razor wire
b.Welded Wire Mesh
c.Gabion box
3.Razor Wire Clips Specification
| Item No | Length(mm) | Width(mm) | Height(mm) | Thickness(mm) |
| 1.Little Clips | 20 | 11 | 8.5 | 0.8-1.5 |
|
2.Common Clips(suitable BTO-22 Razor Wire) |
22 | 11 | 8.5 | 1.0 |
| 3.Middle Clips | 25 | 11 | 8.5 | 0.8-1.5 |
| 4.Bigger Clips | 27 | 11 | 8.5 | 0.8-1.5 |
| 5.Much Bigger Clips | 45 | 11 | 8.5 | 0.8-1.5 |
| 6.Biggest Clips | 55 | 13 | 8.5 | 0.8-1.5 |
4.Razor Wire Clips Feature
The correct way to use the clips is as follows:
1. Drop the semi-finished product of razor wire on the bracket and wait for the buckle worker to buckle.
Second, buckle workers with special callipers with clips and razor wire in order to be connected, the order can not be reversed, finally formed a common crossed razor wire.
Three, the clips good wire roll cage can double - layer packaging.
5.Contact us
Mob:+8618232390392
Wechat:008618232390392
Whatsapp:008618232390392
Skype:008618232390392
Facebook:008618232390392
Email:wiremesh2@aptaiye.com
Contact Person: Daisy
Tel: +8615030856733
