Home ProductsRazor Barbed Wire

Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection

Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection

    • Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection
    • Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection
  • Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection

    Product Details:

    Place of Origin: China
    Brand Name: TAIYE
    Certification: ISO9001 10001
    Model Number: RBW - 98

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 tons
    Price: Factory price
    Packaging Details: waterproof paper inner, woven bag outside or with carton
    Delivery Time: 8 - 22 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 150 tons per month
    Contact Now
    Detailed Product Description
    Circle Diameter: 380 - 980mm Shape: Spiral
    Wire Gauge: 1.4mm~2.6mm Specimen: Free Provide
    Application: Isolation Protection Keywords: Razor Barbed Wire

    Security conductor razor coil electric blade wire spiral barbed wire





    Conductor/alarm coil



    • As intruder moves onto the outer coil (earth) they touch the inner coil (live) which activates an alarm (or if the intruder earths the inner live coil he sets-off the alarm)
    • Optional Repulse ShockIn addition to the alarm detection system, a high voltage (5-7000 Volt) current can be fed into the system which will give an intruder a non-lethal repulse shock (this is an optional feature of the energiser)

    Energised wire



    This “live return” cable forms a circuit which is used to detect cutting of the barrier, it is fixed to the end of the inner live wire and is considered optional as the act of cutting is also likely to cause a short circuit which will activate the alarm

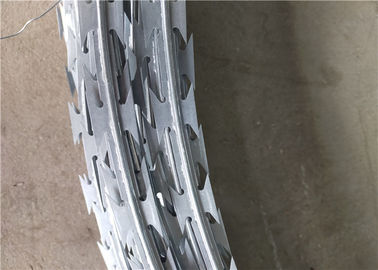

    Razor wire



    The outer coil which is made of barbed tape concertina/razor wire provides a fierce physical deterrent (this also prevents access to the live inner coil by innocent people)



    Energiser



    It is connected to a 220 Volt / 12 Volt charger transformer which supplies the power. It also includes a 2-day battery

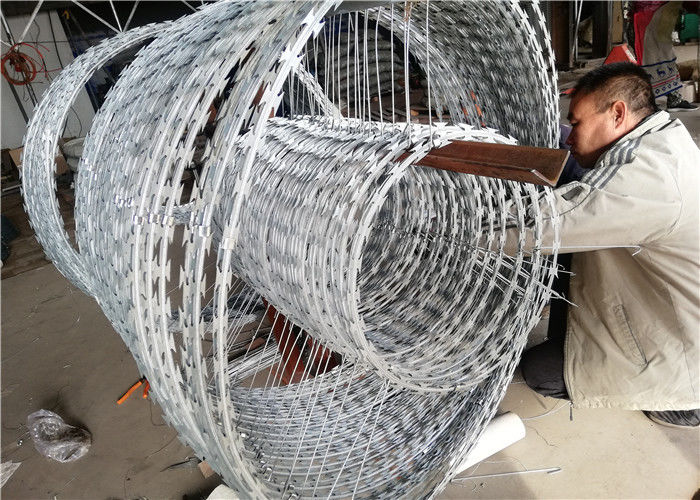

    Production Step
    1 Punch the steel plate to be razor sharp
    2 Put the core wire into the razor plate
    3 Put the clips on the razor wire
    4 Package



    Security Conductor Razor Coil Electric Spiral Barbed Wire For Isolation Protection
