SS 304 316 Stainless Steel Razor Wire Razor Barbed Wire Spiral BTO 10 BTO 12

SS 304 316 Stainless Steel Razor Barbed Wire Spiral BTO 10 BTO 12

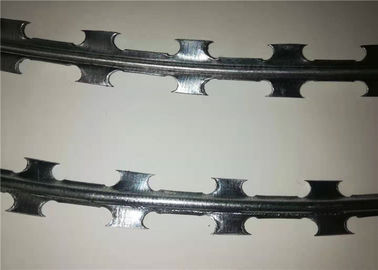

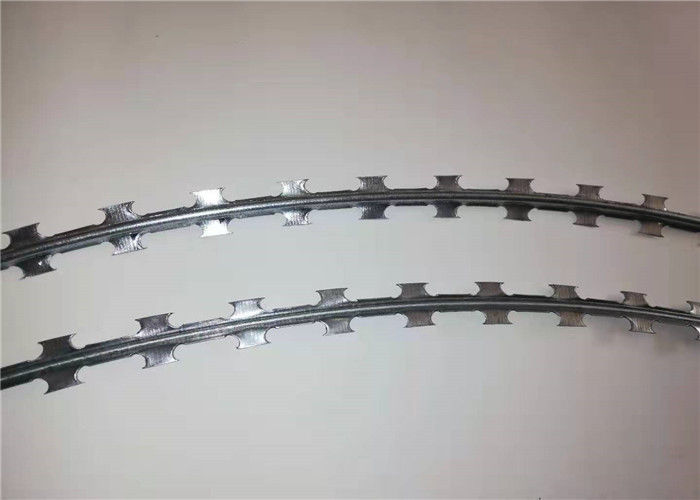

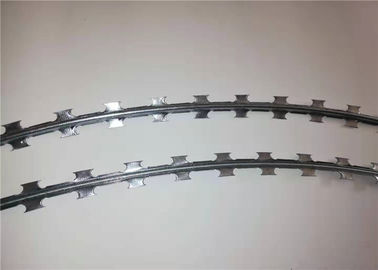

Stainless steel razor barbed wire features high tensile strength, excellent corrosive resistance and durability. In addition, stainless steel concertina coil will never tarnish and remain shining appearance even after several years' usage.

Stainless steel razor barbed wire often cooperates with chain link fence, welded fence or field fence, walls and gates. It effectively upgrades the security level and protects your property and family from threatening.

Spiral barbed wire (razor type)

• Roll of spiral wire diameter when pressed together is 900-1000 mm.
• Roll of spiral wire diameter when extended 850-900 mm.
• One unit of mounted spiral wire (roll) forms barrier unit which is 10-12 meter long in length.
• One unit of spiral wire (roll) has 50-60 spirals (turns).
• Required mounting clamps for one spiral is at least 5.
• Barbed wire profile "short thorn" must be either:

1. BTO-10: thorn length 10 ± 1 mm, thorn width 13 ± 1 mm, center distance between the thorns 26 ± 1 mm.
2. BTO-12: thorn length 12 ± 1 mm, thorn width of 15 ± 1 mm, center distance between the thorns of 26 ± 1 mm.

• Used barbed wire material (plate) thickness has to be 0.5 + / - 0.05 mm.
• Used reinforced wire diameter has to be at least 2.5 ± 0.1 mm.
• Used reinforcing wire has to be galvanized steel wire.
• Used thorn (barbed tape) material has to be stainless steel.
• Spiral wire has to be reusable.

Materials and storage: All material lifespan (ie not corroded) in storage conditions (temperature -30 °C to +35 °C, relative humidity 60%) has to be at least 10 years.

Packing and marking

• Basic package (for one roll): Must ensure smooth cargo handling (loading, lifting) and prevent hand injuries by wire.
• Transport package marking: Transport package has to contain min. of 10 and max. 50 basic package (one roll). Basic packages has to be packed in to transport package in a way that ensures smooth and safe handling.
