Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing

Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing

  • Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing
  • Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing
Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing
Product Details:
Place of Origin: China
Brand Name: Taiye
Certification: ISO9001 10001
Model Number: RBW-74
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: According the quantity
Packaging Details: 1.Plastic film 2.woven bag 3.wooden pallets 4.As ur required
Delivery Time: 7 - 16 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 32 tons per day
Contact Now
Detailed Product Description
Most Popular: BTO10 12 18 22 Sort: Flat Razor Wire
Wire Material: High Quality Low Carbon Wire,SS Surface Material: Electro Galvanized,hot Dipped Galvanized Or In Green,blue,etc.
Meter: 15m Or As Ur Required Quality Assurance: According To The Material
High Light:

concertina garden fence

,

razor wire prison fence

Blades Applied for Flat Razor Wire Panel for Pakistan Philippines

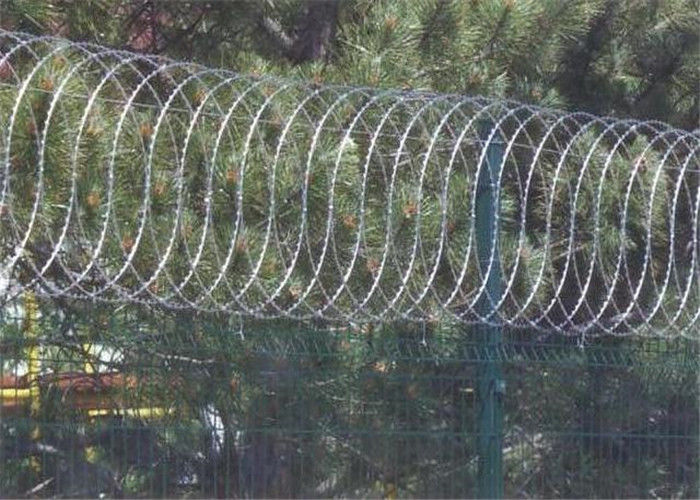

Flat razor wire fence is the new application for razor wire. It is practicable and beautiful. It can be used together with the straight type razor barbed wire to form protecting wall. Razor barbed wire in flat wrap type is mainly used in warehouse, stock farm, farm, mine, prison, national defense, etc.



Flat Wrap Razor Wire Offers Effective but Neat Barrier Solution
Flat wrap razor wire is installed onto the brick wall, forming a neat perimeter barrier.
More Compact Design Than Spiral Razor Wire, 'Flat Form' Fencing Top for Crowded Areas.



Flat wrap razor wire is fabricated by using single strand razor wire which is then clipped to create flat sheet in vertical direction. The flat wrap coil can be used to upgrade any existing fence or brick wall, which is an ideal alternative to common concertina razor wire where high security is required but with space restriction.





Razor Wire Type: Flat Coils
10m to 15m Per Roll,
OD: 600, 750, 900mm;

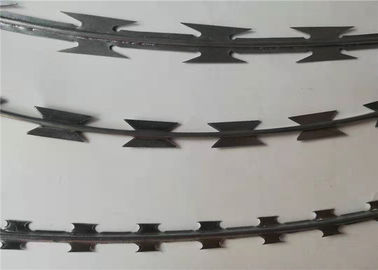

Blade Type: BTO - 10, 12, 18, 22



Blades Applied for Producing Flatwrap Razor Wire Panels:



Material of Razor Barbed Wire:


1. High quality low carbon wire

2. Galvanized wire(Electro galvanized and hot dipped galvanized)

3. PVC Coated Wire(In green,blue,etc.)

4. Stainless Steel(430;304,304L,316,316L)

Type Blade Style Thick-ness Wire Dia Barb
Length
Barb
Width
Barb
spacing
BTO - 10 Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing 0 0.5 ± 0.05 2.5 ± 0.1 10 ± 1 13 ± 1 25 ± 1
BTO - 12 Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing 1 0.5 ± 0.05 2.5 ± 0.1 12 ± 1 15 ± 1 25 ± 1
BTO - 18 Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing 2 0.5 ± 0.05 2.5 ± 0.1 18 ± 1 15 ± 1 35 ± 1
BTO - 22 Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing 3 0.5 ± 0.05 2.5 ± 0.1 22 ± 1 15 ± 1 36 ± 1





Standard Flatwrap Razor Barb Wire Coil Sizes



Height Length Weight
500mm(20 in) 15 m (50 ft) 9.5 kg (21 lbs)
700 mm (28 in) 15 m (50 ft) 13 kg (29 lbs)
900 mm (36 in) 15 m (50 ft) 14.5 kg (32 lbs)





Blades For Flat Wrap Razor Wire Panel , BTO10 12 18 22 Concertina Wire Fencing 4
