Home ProductsBTO 22 Razor Wire

Industrial Security Barbed Wire With Blades New Type Corrosion Resistant

Industrial Security Barbed Wire With Blades New Type Corrosion Resistant

    • Industrial Security Barbed Wire With Blades New Type Corrosion Resistant
    • Industrial Security Barbed Wire With Blades New Type Corrosion Resistant
    • Industrial Security Barbed Wire With Blades New Type Corrosion Resistant
  • Industrial Security Barbed Wire With Blades New Type Corrosion Resistant

    Product Details:

    Place of Origin: Anping China
    Brand Name: Taiye
    Certification: ISO9001 ISO140001
    Model Number: 81

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 Rolls
    Price: To be negotiated
    Packaging Details: Inner waterproof paper with woven bag outside, 50 coils be a bundle.
    Delivery Time: 3-7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20 tons per day
    Contact Now
    Detailed Product Description
    Materila: Electric Galvanized & Hot Deep Galvanized & High Galvanized Thickness Of Razor: 0.45mm
    Diameter Of Inner Razor Wire: 2.7mm-2.8mm Weight Of Per Coil Razor: 10kg
    Diameter Of Coil Razor: 450mm Package: Inner Waterproof Paper With Woven Bag Outside, Then 50coils A Bundle
    High Light:

    barbed wire razor wire

    ,

    razor blade barbed wire

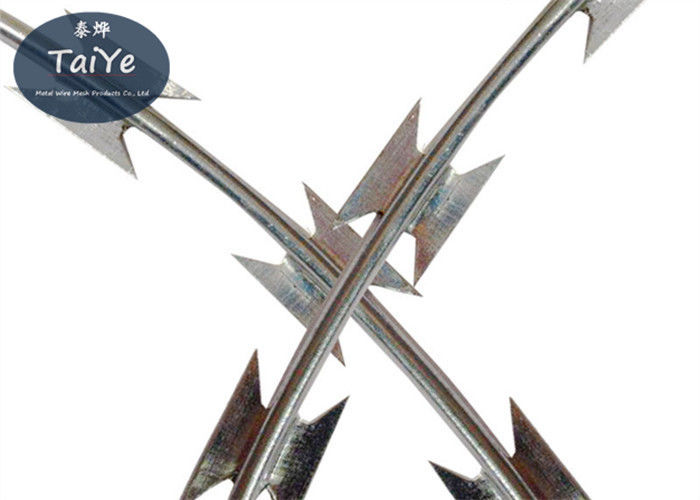

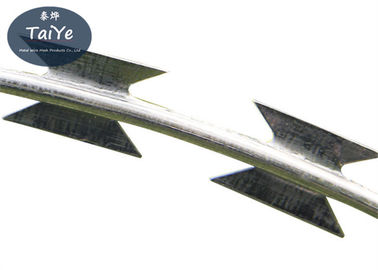

    High Quality Security New Type BTO-22 Razor Barbed Wire Price



    Razor barbed wire is a new type of fence, razor wire is corrosion-resistant galvanized steel or stainless steel as raw material processed, Is one of the most popular high-level protection of metal construction materials.

    Application:razor barbed wire is a new kind of protection fence widely used in mine,garden,frontier post and prison,etc



    Electric Galvanized BTO22 Razor Barbed Wire is named as its Electric Galvanized Material and the Razor blade style is BTO22.

    From the material it divided into Electric Galvanized Razor Barbed Wire, Hot Dipped Galvanized Razor Barbed Wire, High Galvanized Razor Barbed Wire.
    Compare the three material quality:
    Electric Galvanized Razor Barbed Wire<Hot Dipped Galvanized Razor Barbed Wire<High Galvanized Razor Barbed Wire.



    The Electric Galvanized BTO-22 Razor Barbed Wire specification is:

    1. Material: Hot Galvanized sheet with Electric Galvanized Wire

    2. Core Wire Diameter: 2.7±0.1mm

        Razor Barbed sheet thickness: 0.5±0.05mm

    3. Razor Loop Diameter:

        300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.

        450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes

    4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg)

    5. Meters of per coil Razor Barbed Wire:

    Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them.

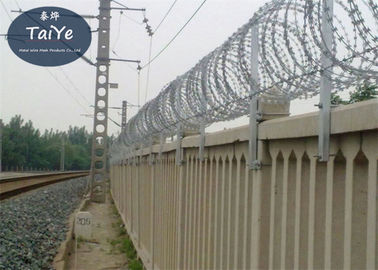

    6. Application

    • Industrial and mining enterprises
    • garden apartment
    • border posts
    • military field
    • prisons
    • detention center
    • government buildings
    • other national security facilities.

    7. Package:

    1> Per coil Razor Barbed Wire be packed waterproof paper inside with woven bag outside. Then 50 coils or 100 coils be a bundle with steel strip. Or as customers’ requirement to pack to pallet or carton box.

    2> Razor Barbed Wire can be loaded to containers in bulk( that is one by one), but this package will lose the quantity for one container.

    3> Also has customers’ request there are no waterproof paper inside. Only just let the Razor Barbed Wire be packed with woven bag then several coils Razor Barbed wire to pallet.



    8. Shipping

    Shipping time: after receiving deposit, 3-7 work days will sent out factory

    Shipping Way: BY sea, by train, by plane

    Shipping Port: Tianjin Port, Shanghai Port.



    Reference Number
    Thickness
    Wire Dia.
    Barb Length
    Barb Spacing
    Barb Spacing
    BTO-10
    0.5mm
    2.5mm
    10mm
    13mm
    26mm
    BTO-12
    12mm
    13mm
    26mm
    BTO-18
    18mm
    15mm
    33mm
    BTO-22
    22mm
    15mm
    37mm
    BTO-28
    28mm
    15mm
    45mm
    BTO-30
    30mm
    18mm
    42mm
    CBT-60
    60mm
    32mm
    100mm
    CBT-65
    65mm
    21mm
    100mm





    Outside Diameter No. of Coils Coil Length Type Notes
    450mm 33 8M CBT-65 Single coil
    500mm 41 10M CBT-65 Single coil
    700mm 41 10M CBT-65 Single coil
    960mm 53 13M CBT-65 Single coil
    500mm 102 16M BTO-10.15.22 Cross type
    600mm 86 14M BTO-10.15.22 Cross type
    700mm 72 12M BTO-10.15.22 Cross type
    800mm 64 10M BTO-10.15.22 Cross type
    960mm 52 9M BTO-10.15.22 Cross type



    Anping TaiYe Wire Mesh Products Co.,LTD is a professional manufacturer and exporter of series wire mesh products.We mainly produce and supply the following products: Concertina razor wire, Razor wire flat wrap, Razor mesh;Wall spike, Security wall spike, Anti climb wall spike, Fence spike; Mobile security barrier, Rapid deployment barrier Concertina, Mobile razor wire security barrier; barbed wire, PVC coated barbed wire, Double twisted barbed wire; Razor mesh, Razor wire mesh fencing: Palisade fence, Welded mesh fence, Euro fence, Chain Link fence and other wire mesh products. Dozens of various kinds in about one thousand specifications. Besides supplying the domestic market, we have also established good business relationship with many countries such as European countries, the USA, Middle –east, Southeast Asia and some other countries and regions.
    Any question kindly contact our sales manager Rill.

    Skype is rill1990,

    email is rill90@hotmail.com or rill@aptaiye.com,

    mob or weichat is 86 18731838063 or RillJI.

    Glad to provide professional service for u.
