Home ProductsBTO 22 Razor Wire

Strong Protection BTO 22 Razor Wire Good Anti Blocking For Kenya Market

Strong Protection BTO 22 Razor Wire Good Anti Blocking For Kenya Market

    • Strong Protection BTO 22 Razor Wire Good Anti Blocking For Kenya Market
    • Strong Protection BTO 22 Razor Wire Good Anti Blocking For Kenya Market
  • Strong Protection BTO 22 Razor Wire Good Anti Blocking For Kenya Market

    Product Details:

    Place of Origin: ANPING CHINA
    Brand Name: Taiye
    Certification: ISO9001 ISO140001
    Model Number: 38

    Payment & Shipping Terms:

    Minimum Order Quantity: 1ton
    Price: To be negotiated
    Packaging Details: Inner waterproof paper with woven bag outside, 50coils be a bundle or carton or pallet
    Delivery Time: 5-8days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash
    Supply Ability: 20tons per day
    Contact Now
    Detailed Product Description
    Material: Galvanized Thickness Of Razor: 0.45mm±0.05
    DIameter Of Inner Wire Razor: 2.7mm±0.1 Weight Of Razor: 10kg 12kg
    Diameter Of Per Coil Razor: 450mm 500mm 600mm 700mm 800mm 900mm Package: Inner Waterproof Paper With Woven Outside

    China Manufacturer Hot Sale BTO22 Galvanized Razor Barbed Wire Fence For Kenya Market

    Concertina razor barb wire , also known as scraper type razor wire , is a development of a strong protection, isolation ability of a new type of protective fence wire products. The sharp knife thorn is shaped by a double-line buckle into a serpent belly, which is both beautiful and shuddering.



    1. Chemical Tests

                           Element Razor ( Req %) Conform             Core Wire (Req %) Conform

    C 0.14-0.21 0.85-0.95
    Si 0.09-1 0.10-0.23
    Mn 0.4-0.5 0.38
    Cr 0.3-0.4 0.30
    Ni 0.36-0.4 0.35
    Cu ≤0.06 ≤0.06
    Fe 98.25 97.57



    2. Mechanical / Physical quantities



    Sr Properties Req Limits Conform
    a Corrosion/rust resisting Min 5 years
    b Hot Dipped Galvanized Wire & Blade
    c Razor Zn surface coating(g/m2) 80
    d Core Wire Zn coating thickness(μm) 8-10
    e Core Wire tensile strength(MPa) 1430-1450
    f Core Wire Hardness(HV) ≤410
    g Razor Hardness(HV) ≤116



    3. Physical measurements



    Sr Properties Req Limits
    a Blade Thickness(mm) 0.5±0.05
    b Core Wire Dia(mm) 2.5±0.01
    c Barb Length(mm) 22±1
    d Barb Width(mm) 15±1
    e Barb Spacing(mm) 35±1
    f Loops/Coil (nos) 288
    g Coi Dia(mm) 700±5
    h CoilLength(m) 70
    i Weight/Coil(kg) 65±2

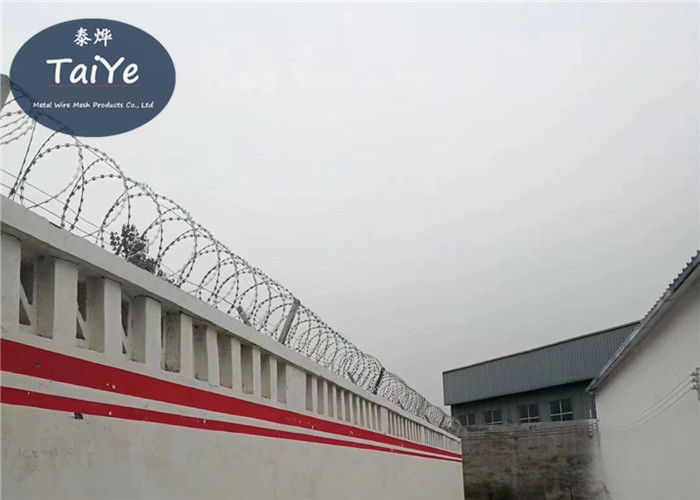

    Razor wire usage:
    maily serves in protecting of grass boundary, railway, highway and also widely used in military, jail and other national security organizations, and industry, agriculture, animal husbandry, dwelling house, also used as fence for cottage as society fence and other private buildings.

    Packing Details:
    1. 3kg - 15kg per roll,liner waterproof paper ,outside weaving bag,
    2. 300-500kg per bundle ,
    3. use carton box,using pallet
    4. according to customer requirements

    Our Service

    24 Hours Online Service

    . Enquiry will be replied in 2 hours.
    . Quality guarantee
    . Custom make product
    . Free Samplme
    . Fastest delivery



    Anping TaiYe Wire Mesh Products Co.,LTD is a professional (ISO9001:2008 certificated) manufacturer and exporter of series wire mesh products.We mainly produce and supply the following products: Concertina razor wire, Razor wire flat wrap, Razor mesh;Wall spike, Security wall spike, Anti climb wall spike, Fence spike; Mobile security barrier, Rapid deployment barrier Concertina, Mobile razor wire security barrier; barbed wire, PVC coated barbed wire, Double twisted barbed wire; Razor mesh, Razor wire mesh fencing: Palisade fence, Welded mesh fence, Euro fence, Chain Link fence and other wire mesh products. Dozens of various kinds in about one thousand specifications. Besides supplying the domestic market, we have also established good business relationship with many countries such as European countries, the USA, Middle –east, Southeast Asia and some other countries and regions.
    Any question kindly contact our sales manager Rill and Skype is rill1990, email is rill90@hotmail.com, mob or weichat is 86 18731838063 or RillJI. Glad to provide professional service for u.
