Industrial Stainless Steel Razor Wire BTO11 Specification For Wall Protection

Industrial Stainless Steel Razor Wire BTO11 Specification For Wall Protection

    • Industrial Stainless Steel Razor Wire BTO11 Specification For Wall Protection
    • Industrial Stainless Steel Razor Wire BTO11 Specification For Wall Protection
  • Industrial Stainless Steel Razor Wire BTO11 Specification For Wall Protection

    Product Details:

    Place of Origin: ANPING CHINA
    Brand Name: Taiye
    Certification: ISO9001 ISO140001
    Model Number: 28

    Payment & Shipping Terms:

    Minimum Order Quantity: 0.5tons
    Price: To be negotiated
    Packaging Details: 1. Inner waterproof paper with woven bag outside, 50 coils be a bundle with strip. 2. Razor Bulk Package with pallet
    Delivery Time: 3-15 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20tons per day
    Contact Now
    Detailed Product Description
    Material: 304 Stainless Steel Razor Blade Style: BTO-11
    Diameter Of Coil Razor: 450mm 500mm 600mm 700mm 900mm Weight Of Per Coil Razor: 7kg 8kg 9kg 10kg 12kg Or As Requirement
    Package: Inner Waterproof Paper With Woven Outside. 50 Coils Per Bundle By Strip Or As Requirement Color: Silver
    Sample: Free
    High Light:

    razor wire mesh fencing

    ,

    razor barbed tape

    304 Stainless Steel Anti Rust Razor Barbed Wire BTO11 Specification



    Introduce the material of Stainless Steel



    Material Stainless Steel has 403, 304, 316, 316L. And based on the same specifications, the price is decided by the difference of material. The best quaility is 316L then will be 316 then 304 the last is 403. So the price 316L is the highest then 316, 304, 403. But best popular for users is the 304 Stainless Steel Material. Its quaility is higher and price is much competitve.



    Outside Diameter NO. Of Coil Coil Length Type Notes
    450mm 33 8M CBT-65. 60 Single Coil
    500mm 41 10M CBT-65. 60 Single Coil
    700mm 41 10M CBT-65. 60 Single Coil
    960mm 53 13M CBT-65. 60 Single Coil
    500mm 102 16M BTO-11..22 Cross Type
    600mm 86 14M BTO-11..22 Cross Type
    700mm 72 12M BTO-11. 22 Cross Type
    800mm 64 10M BTO-11. 22 Cross Type
    960mm 52 9M BTO-11. 22 Cross Type



    Advantage of 304 Stainless Steel BTO11 Razor Barbed Wire



    304 Stainless Steel has high corrosion resistance, Its performance is better than Galvanized. Suitable for high corrosive area such as coasts, chemical and etc.



    BTO11 Razor Barbed Wire is a kind model of Razor Barbed Wire Blade Style which is the smallest razor blade model.

    Razor barbed wire is a kind of high security iron wire. Compared with barbed wire, razor barbed wire has sharp blade. So it widely used in prision, the border area, the army and many high security areas to protect the security. In addition to this, our razor barbed wire can be galvanized or PVC coated. This can prevent corrosion effectively. We can customize according to your needs.



    Reference
    Number
    Thickness Wire Dia Barb
    Length
    Barb
    Width
    Barb
    spacing
    Outside Diameter No. of Loops
    BTO-11 0.5±0.05 2.5±0.1 11±1 15±1 26±1 450mm 33
    BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1 960mm 53
    BTO-28 0.5±0.05 2.5±0.1 28±1 15±1 46±1 500mm 102
    BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 46±1 600mm 86
    CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±2 700mm 72



    The influence factors in pricing for BTO11 Razor Barbed Wire

    1. Material: Galvanized( electric galvanized, hot dipped galvanized, heavy galvanized) Stainless Steel (304, 316)
    2. Loop diameter: 450mm 500mm 600mm 700mm 800mm 900mm
    3. Weight of Coil: 10kg(most popular) 7kg 8kg 9kg 12kg or as requirement
    4. Package: Inner waterproof paper with woven outside. 50 coils per bundle by strip or as requirement.

    The Package of Galvanized BTO11 Razor Barbed Wire



    1. Inner Warterproof paper with woven bag outside, 50 coils be a bundle with steel strips

    2. Bulk razor wire be packed onto pallet

    3. Inner waterproof paper with woven bag outside, then several coils be packed onto pallet.

    4. Bulk razor wire be packed into carton, then several coils be a carton



    Form of protection:



    concertina razor coils,double concertina razor wire,flatwrap coils


    Anping TaiYe Wire Mesh Products Co.,LTD is a professional manufacturer and exporter of series wire mesh products. This company is located in West North Industrial Park of Anping which is well known as Wire Mesh Land of China, enjoys convenient transport condition being close to Beijing, Capital City of China and Tianjin, one of the most important seaport in North China.

    Any question kindly contact our sales manager Rill and Skype is rill1990, email is rill90@hotmail.com, mob or weichat is 86 18731838063 or RillJI. Glad to provide professional service for u.

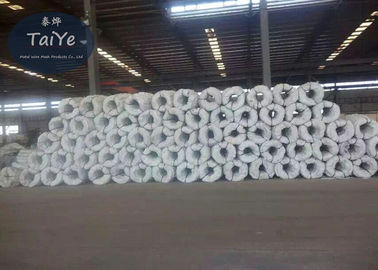

    Industrial Stainless Steel Razor Wire BTO11 Specification For Wall Protection 0

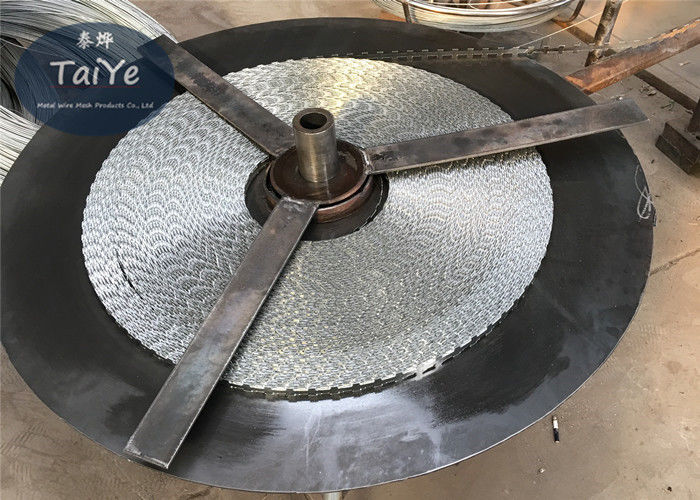

    Industrial Stainless Steel Razor Wire BTO11 Specification For Wall Protection 1
