|Place of Origin:||China|
|Minimum Order Quantity:||15 tons|
|Packaging Details:||Naked or pallet|
|Delivery Time:||10 - 25 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||30tons per day|
|Wire Dia:||BWG10-18||Material:||Hot Dipped Galvanized|
|Zinc Coated:||As Ur Requirment, Usually Is 40-60g||Characteristic:||Sturdy And Beautiful|
bwg10 security barbed wire,
bwg18 security barbed wire,
60g Zinc coated Barbed Wire
Hot Dipped Galvanized Barbed Wire Single And Double Strand Barbed Wire Security Fence

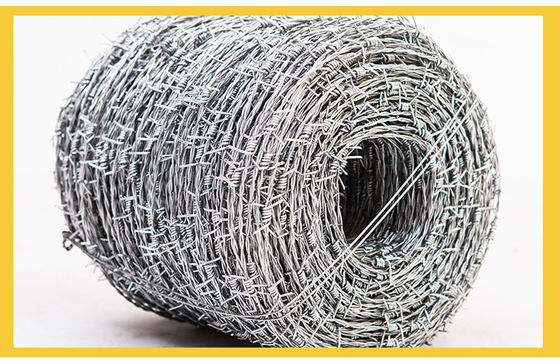

1.The barbed wire is a kind of safety fence, which can enclose the site in several parallel lines to protect the inside from external intrusion. It has thorns on it to scare off the enemy or animals. It has a roll shape with different materials and wire diameters. It can be stretched out during installation, and then fixed with posts or wooden piles.
Hot dip galvanized barbed wire is a product anticorrosion is quite good, on the amount of galvanized zinc layer can be divided into three types:-,
Highway barbed wire isolation gate also have called it barbed wire fence, actually is the barbed wire.
Product has hot dip galvanized and PVC plastic coated PE anticorrosive two kinds.
Specifications have wire diameter 2.6 2.8 mm, steel wire strands wire, barbed wire, 2.2 mm steel wire strand and barbed wire is 1.7 mm weight is 25 kg - almost all volume.Sting from the aspects of 8 cm 10 cm, 12 cm three to 10 cm of has a very wide range of use.Because it is used as protection on both sides of highway, so for the quality requirement is high, good product will have better protection, good product can achieve the standard of acceptance.
Material: high quality low-carbon steel wire Q195 or Q235
Product classification: according to twist method classification: single strand (single wire) twist, double strand (double wire) twist, twist barbed rope.
(1) Single strand barbed wire: Wire diameter: 2.5 (main wire) 2.8-3.0mm (wire) Barb distance: 75-80mm
Coil diameter:,90,100 60 mm
(2) Traditional barbed wire: wire diameter: 1.6-2.8mm Pricker distance: 75,80,100,120,150mm Coil weight: 20-25kg
(3) Twist barbed wire: Wire diameter: strand less than 2.5mm Pitch: 75,80,100,120,150mm roll weight :20-25kg
|Barbed Wire Specification|
Electric Galvanized Barbed Wire;
Hot-dip zinc plating barbed wire
|10# x 12#||7.5-15||1.5-6|
|12# x 12#|
|12# x 14#|
|14# x 14#|
|14# x 16#|
|16# x 16#|
|16# x 18#|
PVC coated barbed wire;
PE barbed wire
|before coating||after coating||7.5-15||1.5-6|
PVC/PE coating thickness: 0.4mm-0.6mm
Different colors or length are available at customers request.
Weight of packing in coil: 16kg/coil, 25kg/coil, 50kg/coil as standard.

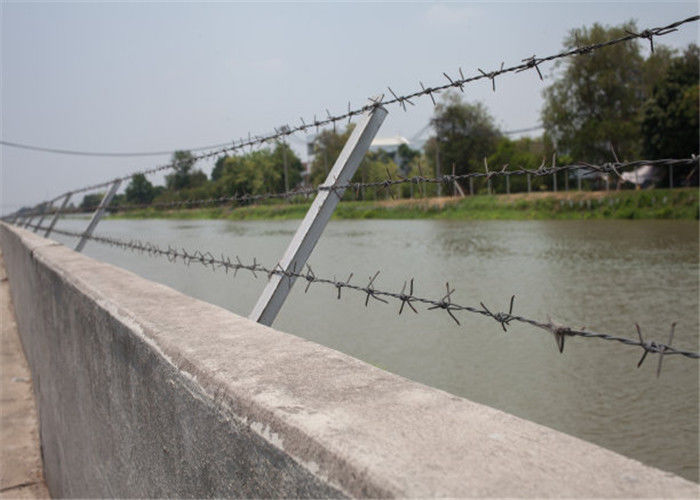

Use of barbed wire: used in factory area, private villa, building first floor, construction site, bank, prison, banknote printing factory, military aircraft, bungalow, low wall, etc.
1: Barbed wire installation requires necessary stretching. This is not a special pen that needs to be stretched, but the necessary stretching is still necessary, because the barbed wire is entangled in bundles when delivered to the user. After the outermost side is unfolded, it will rebound due to the shrinkage of the metal wire. This requires us to use mechanical appliances to perform the necessary stretching to achieve a straight effect, so that the installation of the barbed wire is not only beautiful and beautiful, but also achieves a higher utilization rate.
2: The problem of fixing the barbed wire to the column is also quite prominent. Many users buy cement poles by themselves but don’t know if the barbed wire is fixed to it, or even more so, they are directly wound around the cement pole to achieve fixation. The purpose of the barbed wire manufacturer is actually to use iron wire to tie the two together to achieve the purpose. However, it is recommended that users purchase special barbed cord posts from the barbed cord factory because there are hooks on them for fixing, so they are relatively strong.
