|Place of Origin:||China|
|Model Number:||RBW - 72|
|Minimum Order Quantity:||100 kg|
|Packaging Details:||Standard inside paper outside woven bags. Carton box packing available according to our customer's requirement.|
|Delivery Time:||1 - 20 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||30 tons per day|
|Blade Type:||Cross Balde Or Single Blade||Blade Thickness:||0.5±0.05|
|Inner Dia:||2.5±0.1mm||Barb Length:||10 - 65mm|
|Barb Width:||13 - 32mm||Space Between:||26 - 100mm|
razor wire tape,
razor sharp wire
Concertina Razor Blade Barbed Wire Rolls Razor Wire Fencing Details
Concertina Razor Wire Introduction
Concertina Razor Wire is widely used for construction of high security fencing projects in military and national defence. We export directly and supply Razor Wire for Government tenders and constractors in various countries. Concertina Wire can be divided into Single Concertina and Crossed Concertina Wire.

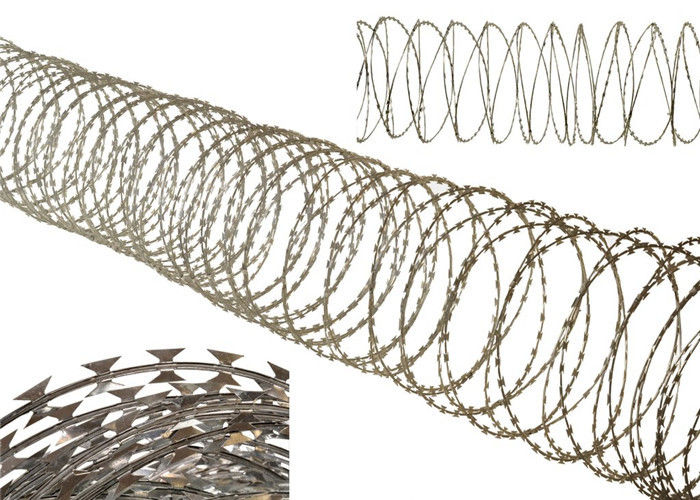

Concertina Razor Blade Barbed Wire Rolls
1. Supplied in rolls
2. Line wire : 2.5mm diameter ± 0.1mm made of low carbon spring steel wire and galvanised
3. Barbed wire: 0.6mm ± 0.05mm made of low carbon steel and galvanised
4. Clips : 1.6mm ± 2mm made of low carbon steel
5. Carrying loop : 3.5mm diameter ± 2mm made of low carbon steel and galvanized
6. Coil diameter : 450 - 960mm
7. No. of Spiral turns : minimum 79
8. Extended coil length : minimum 10 meter
9. Barb spacing : 38 ± 2mm
10. Barb spacing in Spiral turns : 17mm ± 2mm
11. Barb width : 13 - 32mm
12. Razor length : 10 - 65mm

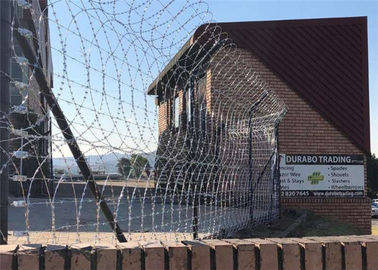

Concertina Razor Wire Install
Important: Before installing concertina rolls, always use work gloves to protect your hands. Gloves with reinforced palms are ideal to help protect your hands when catching the concertina wire.
Determine the number of rolls used in each stage or section of fencing,, this depends on the type of razor wireis elected, as each roll can reach from 8 to 15 feet away, is an item must consider very important.
Place on rolls of razor wire fence, holding the initial post at the bottom and top..
After placing the roll on the pole razor wire where to install, it is necessary to set the upper and lower pole clamp, so as to be subject to the concertina.
Once the razor wire subject to the post, the next step will tighten the upper wire (at this point can be placedbarbed wire o concertina CT 10 o concertina CT 22) and that these remain positioned horizontally and parallel to the base of the fence,, using the wire tensioner. Once done, then repeat with the remaining wires.
Once tensioned wires, and using these as clamping the razor wire, you must distribute rolls concertina at a distance of 6 to 10 meters apart
Distributed razor wire rolls, hold the tip beginning of the roll between the clamp and the barbed wire..
Once at this point, distribute the razor wire every 25 cm,, once a roll has come to an end, you must hold the tail end of the first roll with the point of beginning of the second, so that there is no space of perimeter uncovered, this is important, because it can be an easy point of exceeding our fence and our installation will not be helped.
With razor wire rolls distributed along the fence. To be absolutely still and no movement is occurring,we hold the concertina fence around every 3 spiral.
This step is recommended to use galvanized wire, as it is more manageable and durability is much higher.
After these 8 simple steps We have installed our razor wire fencing !!
