|Place of Origin:||ANPING CHINA|
|Minimum Order Quantity:||1 tons|
|Price:||To be negotiated|
|Packaging Details:||1.Be packed into carton. 2, Inner waterproof paper with woven bag outside, 50 coils be a bundle by strip.|
|Delivery Time:||3-8 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||20tons per day|
|Material:||Galvanized( Electric Galvanized, Hot Dipped Galvanized, High Galvanized) Epoxy, Electrophoretic, Stainless Steel(304, 316, 316L)||Razor Blade Style:||CBT-60|
|Razor Thickness:||0.5±0.05mm||Inner Wire Dia.:||2.5±0.1mm|
|Razor Barb Length:||60±1mm||Razor Barb Width:||32±1mm|
|Razor Barb Spacing:||100±2mm||Package:||Packed Into Carton Or As Request|
razor wire tape,
barb wire strip
CBT60 Galvanized Reinforce Concertina Razor Barbed Wire Coil For Sale
Material: Galvanized Steel Sheet and wire or Stainless Steel Sheet and Wire, PVC(Epoxy), Electrophoretic
1. Galvanized Steel Sheet and Wire
① Hot dipped galvanzied steel sheet with electric galvanized wire
② Hot dipped galvanized steel sheet with Hot dipped Galvanized wire ( most popular)
③ High galvanized steel sheet with high galvanized wire
2. Stainless Steel Sheet and Wire
430,304, 316, 316L

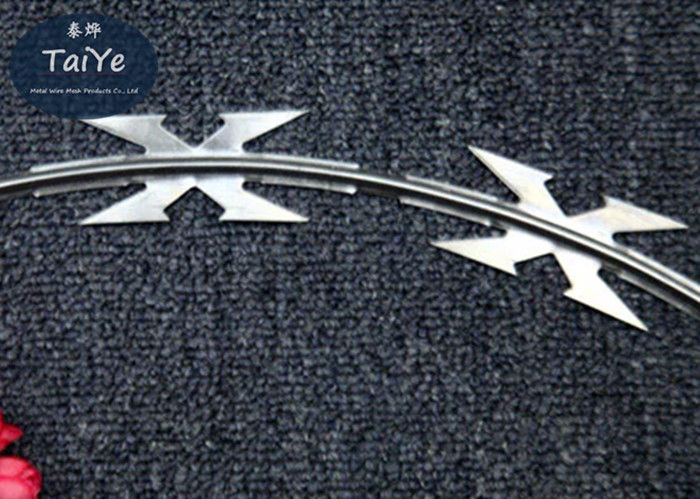

CBT-60 Razor Blade Specification
Razor Blade Style:CBT-60
Inner wire Dia.:2.5±0.1mm
Razor Barb Length: 60±1mm
Razor Barb Width: 32±1mm
Razor Barb Spacing: 100±2mm
CBT-60 Razor Type Wire Specification
The lengh and the diameter of the coil can be desighed according to the customers' need.
|Reference No.||Thickness||Wire diameter||Barbe length||Barbe length||Barbe spacing|
|BTO-10||0.5 +/- 0.05||2.5 +/- 0.1||10 +/- 1||13 +/- 1||26 +/- 1|
|BTO-12||0.5 +/- 0.05||2.5 +/- 0.1||15 +/- 1||15 +/- 1||26 +/- 1|
|BTO-18||0.5 +/- 0.05||2.5 +/- 0.1||18 +/- 1||15 +/- 1||33 +/- 1|
|BTO-22||0.5 +/- 0.05||2.5 +/- 0.1||22 +/- 1||15 +/- 1||34 +/- 1|
|BTO-28||0.5 +/- 0.05||2.5||28||15||45 +/- 1|
|BTO-30||0.5 +/- 0.05||2.5||30||18||45 +/- 1|
|CBT-60||0.6+/- 0.05||2.5 +/- 0.1||60 +/- 2||32 +/- 1||100 +/- 2|
|CBT-65||0.6 +/- 0.05||2.5 +/- 0.1||65 +/- 2||21 +/- 1||100 +/- 2|
|Outside Diameter||No. of Loops||Standard Length per Coil||Type||Notes|
CBT-60 Razor Barbed Wire has two kinds types:
1. Single Coil (without clips)
Most popular Specification: Dia.450mmx5kg/coil be packed into carton
2. Cross Type(with clips)
Most popular Specification: Dia.450mmx10kg/coil be packed inner waterproof paper with woven bag outside, then 50 coils be a bundle with strips
Conventional Weight and Diameter of per coil Razor: 500mmx10kg/coil which cover meter 10 meters (when spacing meter is 0.35-0.4meter)

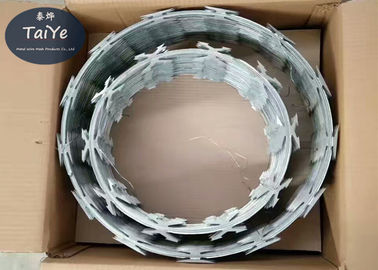

1. Be packed into carton (single coil most popular)
2. Inner waterproof paper with woven bag outside, 50 coils be a bundle with strips (cross type most popular)
3. 50coils be a pallet.
4. as customers' requirement
It plays the role of protection in mines, gardens and apartments, frontier and sentry defence, and enclosure of prisons.
